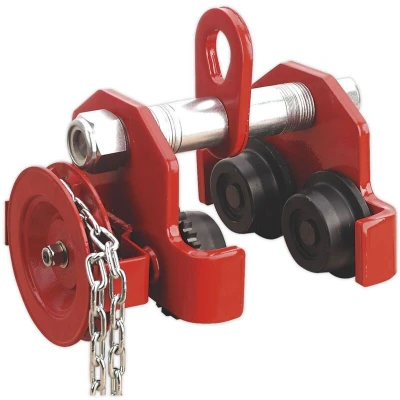

Sealey Trolley Geared 3 Tonne

The geared block trolley is an essential tool designed for the efficient movement of heavy loads along an I-beam or RSJ. This robust piece of equipment is compatible with lever hoists and chain blocks, transforming the way you handle materials in workshops, warehouses, and construction sites.

Design and Functionality

Engineered for excellence, the geared block trolley allows for effortless sideways manoeuvrability of loads. This is particularly beneficial when working in compact spaces or on overhead fixtures where adjusting the positioning of heavy items is crucial. The trolley is mounted securely onto an I-beam, ensuring stability and control during use.

A significant feature of this trolley is its incorporation of wheel guards, which effectively prevent contact with other trolleys that might be mounted on the same load-bearing beam. This thoughtful design minimizes the risk of accidents, allowing for a safer working environment.

Technical Specifications

This model, designated as PT3000G, boasts impressive specifications:

- Nett Weight: 41 kg

- Capacity: 3000 kg

- Test Load: 4500 kg

- Track Width Adjustable Range: 76 mm to 203 mm

- Minimum Curve Radius: 1500 mm

- Dimensions:

- Length: 370 mm

- Height: 280 mm

- Weight: 41 kg

- Minimum Standard I-Beam Dimensions (D x W x Web): 200 x 100 x 7 mm

- Maximum Standard I-Beam Dimensions (D x W x Web): 850 x 150 x 9 mm

- Maximum Distance Between Spans: 2700 mm (min) to 4500 mm (max)

These specifications illustrate the trolley's capacity to cater to a variety of lifting requirements, making it versatile for different applications.

Ease of Use

One of the advantages of the geared block trolley is its geared mechanism, which simplifies the manual handling of loads. By utilizing a chain rather than relying solely on physical strength, users can safely and efficiently position heavy items. This is particularly advantageous for scenarios where lifting equipment or manual labour may not be feasible or safe.

Warranty and Reliability

The geared block trolley comes with a one-year warranty, ensuring peace of mind regarding its durability and performance. With proper care and maintenance, this trolley is designed to provide long-lasting service, standing up to the rigours of heavy-duty applications.

In summary, the geared block trolley PT3000G is an indispensable component in any setting where heavy loads need to be moved efficiently. Its robust design, comprehensive features, and ease of use make it a top choice for both professional and industrial purposes.
