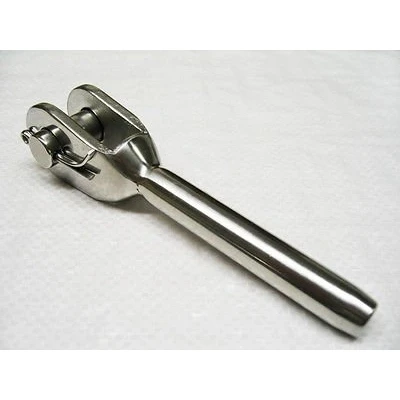

Secure Fix Direct 4mm Swaged Fork Terminal Stainless Steel Swage Jaw Rigging Wire Rope Fitting

ManoMano

SwageD Fork Terminal Suits Wire Diameter - 4MM Metal - 316 Grade Stainless Steel Product Code A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) SFSSTF03 9 3.3 6 6 68 40 SFSSTF04 11.2 4.3 7.6 7.8 77.3 41 SFSSTF05 11.8 5.3 9 8.9 88 60 SFSSTF06 13 6.4 13 9 104 65 SFSSTF07 15.5 7.6 14 12.5 117 72 SFSSTF08 17 8.3 16 16 146 87 SFSSTF10 20 10.6 18 19 149 91 SFSSTF12 22 12.5 20 19 195 107 Our Stainless Steel Swaged Fork Terminals Are Used To Terminate Wire Rope, These Are Mainly Used With The Marine And Architectural Industries. These Are Manufactured From 316 Grade Stainless Steel Which Is Perfect For Rust Resistance And Is Very Pleasing To The Eye When Used In Public Places. Please Note The Clevis Pin On These Terminals May Be Held In Either By A Split Pin Or Cotter Ring. Please Note We Supply A Huge Variety Of Stainless Steel Parts *** FREE DELIVERY *** Product Code - SFSSTF04

Amazon

Suits Wire Diameter - 4MM Metal - 316 Grade Stainless Steel Used to terminate wire rope A=11.2MM B=4.3MM C=7.6MM D=7.8MM E=77.3MM F=41MM
