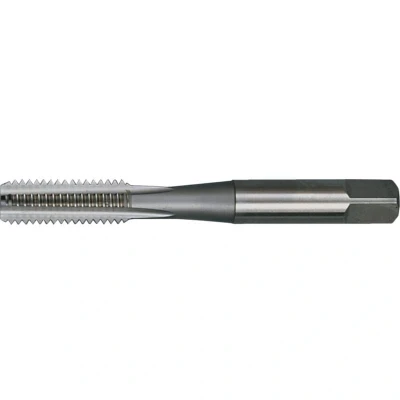

Sherwood 1/8"X28 BSPT HSSGT Straight Flute Second Tap

ManoMano

Sherwood: 1/8"X28 BSPT HSSGT Straight Flute Second Tap IS0 529 - Straight Flute - Second The Sherwood second tap is used after the taper tap has cut threads into the hole as far as possible. It tapers back 3 or 4 threads before a fully threaded diameter is reached. If threading a blind hole a Plug tap will be required to cut threads to the bottom of the hole. MPN: T7368206 EAN: 5036140389502 1/8"X28 BSPT HSSGT Straight Flute Second Tap Attributes: Chamfer: Second Class of Fit: 6H Dimensions Standard: ISO 529 Finish/Coating: Bright Material: High Speed Steel Material Application: Steel Aluminium Cast Iron Stainless Steel Material Grade: M2 Number of Flutes: 4 Overall Length: 59.0mm Pitch: 28 Shank Diameter: 8.0mm Square Width: 6.30mm Tap Type: Straight Flute Thread Direction: Right Hand Thread Length: 15.0mm Thread Size: 1/8in. Thread Standard: BSPT

Zoro Tools

The Sherwood second tap is used after the taper tap has cut threads into the hole as far as possible. It tapers back 3 or 4 threads before a fully threaded diameter is reached. If threading a blind hole a Plug tap will be required to cut threads to the bottom of the hole.
