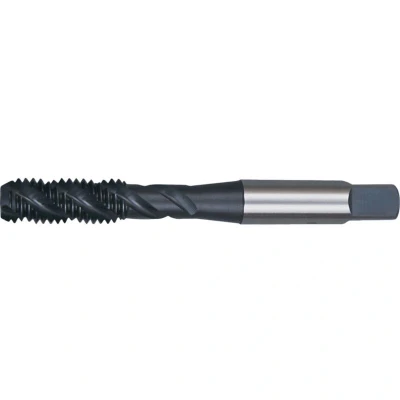

Sherwood 1"X8 UNC HSSGT Spiral Flute Tap
Description
ManoMano
Sherwood: 1"X8 UNC HSSGT Spial Flute Tap IS0 529 - Spiral Flute Spiral flute taps are used for machine tapping of blind holes as the have a spiral flute that channels the swarf back behind the tap and out of the hole along the flute. MPN: S8740U16XOX EAN: 5036140279148 1"X8 UNC HSSGT Spial Flute Tap Attributes: Class of Fit: 2B Dimensions Standard: ISO 529 Finish/Coating: Steam Tempered Helix Angle: 45° Material: High Speed Steel Material Grade: M2 Number of Flutes: 3 Overall Length: 130.0mm Pitch: 8 Shank Diameter: 18.0mm Square Width: 14.0mm Tap Type: Spiral Flute Thread Direction: Right Hand Thread Length: 45.0mm Thread Size: 1in. Thread Standard: UNC
Description
(2)
Sherwood: 1"X8 UNC HSSGT Spial Flute Tap IS0 529 - Spiral Flute Spiral flute taps are used for machine tapping of blind holes as the have a spiral flute that channels the swarf back behind the tap and out of the hole along the flute. MPN: S8740U16XOX EAN: 5036140279148 1"X8 UNC HSSGT Spial Flute Tap Attributes: Class of Fit: 2B Dimensions Standard: ISO 529 Finish/Coating: Steam Tempered Helix Angle: 45° Material: High Speed Steel Material Grade: M2 Number of Flutes: 3 Overall Length: 130.0mm Pitch: 8 Shank Diameter: 18.0mm Square Width: 14.0mm Tap Type: Spiral Flute Thread Direction: Right Hand Thread Length: 45.0mm Thread Size: 1in. Thread Standard: UNC
Zoro ToolsIS0 529 - Spiral Flute
