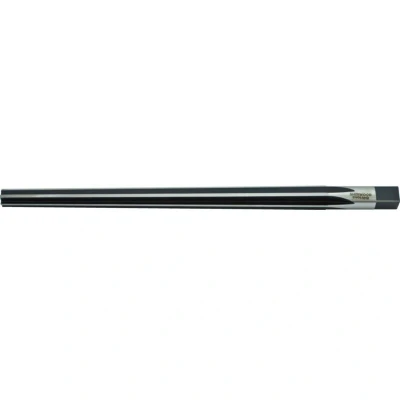

Sherwood 12.00MM HSS S/S St/Fl Hand Taper Pin Reamer
Description
ManoMano
Sherwood: 12.00MM HSS S/S St/Fl Hand Tape Pin Reame Metric. Used to produce a close tolerance surface finish in taper holes to allow the fitting of hardened and ground taper pins in the building of jigs, fixtures and dies. Manufactured to BS 328 : Part 4 : 1990 and DIN 9A. METRIC TOLERANCES: Diameter: Over 1.50 ~ up to 5.00. Tolerance: +0.075, -0.000. Diameter: Over 5.00 ~ up to 20.00. Tolerance: +0.125, -0.000. MPN: CL977504012.0 EAN: 5036140178625 12.00MM HSS S/S St/Fl Hand Tape Pin Reame Attributes: Diameter: 12mm Diameter Range Max: 16mm Diameter Range Min: 11.8mm Flute Length: 210mm Material: High Speed Steel Overall Length: 255mm Reamer Diameter: 12mm Shank Type: Taper Pin
Description
(2)
Sherwood: 12.00MM HSS S/S St/Fl Hand Tape Pin Reame Metric. Used to produce a close tolerance surface finish in taper holes to allow the fitting of hardened and ground taper pins in the building of jigs, fixtures and dies. Manufactured to BS 328 : Part 4 : 1990 and DIN 9A. METRIC TOLERANCES: Diameter: Over 1.50 ~ up to 5.00. Tolerance: +0.075, -0.000. Diameter: Over 5.00 ~ up to 20.00. Tolerance: +0.125, -0.000. MPN: CL977504012.0 EAN: 5036140178625 12.00MM HSS S/S St/Fl Hand Tape Pin Reame Attributes: Diameter: 12mm Diameter Range Max: 16mm Diameter Range Min: 11.8mm Flute Length: 210mm Material: High Speed Steel Overall Length: 255mm Reamer Diameter: 12mm Shank Type: Taper Pin
Zoro ToolsMetric. Used to produce a close tolerance surface finish in taper holes to allow the fitting of hardened and ground taper pins in the building of jigs, fixtures and dies. Manufactured to BS 328 : Part 4 : 1990 and DIN 9A. METRIC TOLERANCES: Diameter: Over 1.50 ~ up to 5.00. Tolerance: +0.075, -0.000. Diameter: Over 5.00 ~ up to 20.00. Tolerance: +0.125, -0.000.
