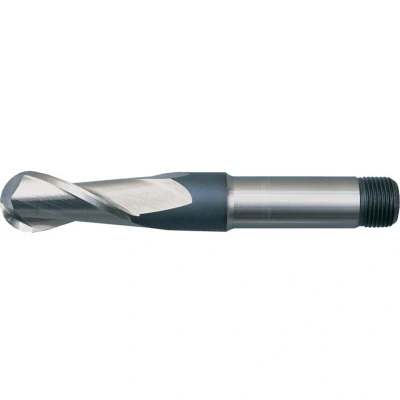

Sherwood 15.00MM HSS 2 Flute Threaded Shank Ball Nosed Long Series Slot Drills Metric

ManoMano

Sherwood: 15.00MM HSS 2 Flute Theaded Shank Ball Nosed Long Seies Slot Dills - Metic Long Series Type B230T. Used for diesinking, slot milling and profile milling. Bright finish. Flute type: 30 Helix. Manufactured to BS 122 : Part 4 : 1980. Metric Tolerances: Diameter: ~ up to 3.00. Tolerance: +0.013 -0.033; Diameter: Over 3.00 ~ up to 6.00. Tolerance:+ 0.020 -0.038; Diameter: Over 6.00 ~ up to 10.00. Tolerance: +0.025 -0.046; Diameter: Over 10.00 ~ up to 18.00. Tolerance: +0.033 -0.058; Diameter: Over 18.00 ~ up to 30.00. Tolerance: +0.041 -0.071; Diameter: Over 30.00 ~ . Tolerance: + 0.051 -0.089. MPN: E1745150 EAN: 5036140276413 15.00MM HSS 2 Flute Theaded Shank Ball Nosed Long Seies Slot Dills - Metic Attributes: Coolant Delivery: External Cutter Diameter: 15.0mm Cutting Direction: Right Hand End Mill Type: Slot Drill Finish/Coating: Uncoated Flute Length: 31.5mm Helix Angle: 30° Length Type: Long Material: High Speed Steel Material Grade: M2 Milling Application: Diesinking

Zoro Tools

Long Series Type B230T. Used for diesinking, slot milling and profile milling. Bright finish. Flute type: 30 helix. Manufactured to BS 122 : Part 4 : 1980. Metric Tolerances: Diameter: ~ up to 3.00. Tolerance: +0.013 -0.033; Diameter: Over 3.00 ~ up to 6.00. Tolerance:+ 0.020 -0.038; Diameter: Over 6.00 ~ up to 10.00. Tolerance: +0.025 -0.046; Diameter: Over 10.00 ~ up to 18.00. Tolerance: +0.033 -0.058; Diameter: Over 18.00 ~ up to 30.00. Tolerance: +0.041 -0.071; Diameter: Over 30.00 ~ . Tolerance: + 0.051 -0.089.
