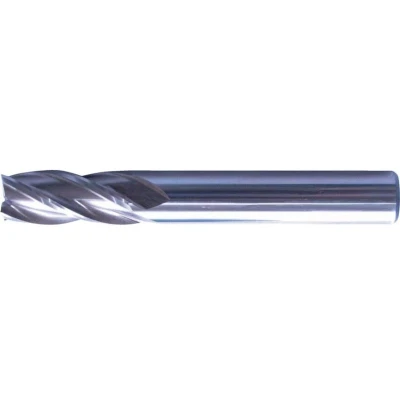

Sherwood 16.00MMX123.00MM HSS Co Plain Shank 4 Flute Long Series End Mills

ManoMano

Sherwood: 16.00MMX123.00MM HSS-Co Plain Shank 4 Flute Long Series End Mills Long Series. Centre cutting, used for profile milling, milling keyways and producing open slots. Bright finish. Flute type: 30 Helix. Overall dimensions to DIN 844. Plain shank to DIN 1835A. MetRIC TOLERANCES: Nominal Dia.: Up to 38mm. Limits of Tolerance: +0.0630, -0.0130. Nominal Dia.: Above 38mm. Limits of Tolerance: +0.1250, -0.0000. MPN: SHR0613884M EAN: 5036140175938 16.00MMX123.00MM HSS-Co Plain Shank 4 Flute Long Series End Mills Attributes: Cutter Diameter: 16mm Cutter Diameter Tolerance: k10 Cutting Direction: Right Hand End Mill Type: End Mill Finish/Coating: Bright Flute Length: 63mm Flute Type: Helical Length Type: Long Material: Cobalt High Speed Steel Number of Flutes: 4 Overall Length: 123mm Plunge Type: Centre Cutting Shank Diameter: 16mm Shank Diameter Tolerance: h6 Shank Type: Plain Round Standards Met: DIN 844 DIN 1835A

Zoro Tools

Long Series. Centre cutting, used for profile milling, milling keyways and producing open slots. Bright finish. Flute type: 30 Helix. Overall dimensions to DIN 844. Plain shank to DIN 1835A. METRIC TOLERANCES: Nominal Dia.: Up to 38mm. Limits of Tolerance: +0.0630, -0.0130. Nominal Dia.: Above 38mm. Limits of Tolerance: +0.1250, -0.0000.
