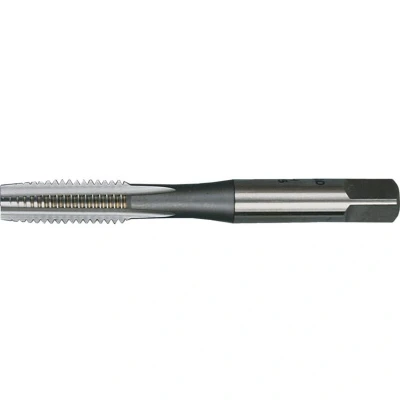

Sherwood 16X1.50MM HSSGT Conduit Straight Flute Taper Tap

ManoMano

Sherwood: 16X1.50MM HSSGT Conduit Staight Flute Tape Tap IS0 529 Straight Flute Individual Sizes. (1) Diameter and pitch not mentioned in ISO. Sherwood taper taps are used to start cutting the thread is tapered back from the end 6 to 10 threads before a fully threaded diameter is reached this allows the tap to be positioned easily and correctly before it starts to cut the thread. MPN: SHR0850520A EAN: 5036140180888 16X1.50MM HSSGT Conduit Staight Flute Tape Tap Attributes: Chamfer: Taper Class of Fit: 6H Dimensions Standard: ISO 529 Finish/Coating: Bright Material: High Speed Steel Material Application: Steel Stainless Steel Cast Iron Material Grade: M2 Number of Flutes: 4 Overall Length: 102.0mm Pitch: 1.5 Shank Diameter: 12.5mm Square Width: 10.0mm Tap Type: Straight Flute Thread Direction: Right Hand Thread Length: 32.0mm Thread Size: M16 Thread Standard: Metric Fine

Zoro Tools

IS0 529 Straight Flute Individual Sizes. (1) Diameter and pitch not mentioned in ISO.
