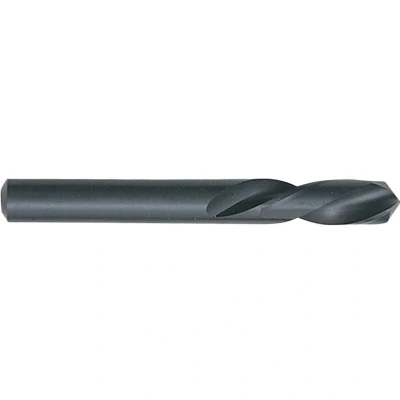

Sherwood 17.50MM HSS S/S Stub Drill

ManoMano

Sherwood: 17.50MM HSS S/S Stub Dill Series S100 HSS straight shank stub drills are designed as general purpose drills for use on automatics and turret lathes. Suitable for drilling steels, cast iron, alloy steel and malleable cast iron. Features and Benefits Manufactured form HSS for strength and rigidity when machining Black oxide coating for additional heat and wear resistance Designed for use on automatic ans turret lathes Typical Applications Drilling Steels Cast iron Alloy steel Malleable cast iron Standards Manufactured to BS328: Part 1: 1986/DIN 1897. MPN: SHR0251368L EAN: 5036140170933 17.50MM HSS S/S Stub Dill Attributes: Cutting Direction: Right Hand Drill DiaMeter: 17.5mm Drill Diameter Metric: 17.5 Drill Diameter Tolerance: h8 Finish/Coating: Black Oxide Flute Length: 62mm Flute Type: Spiral Helix Angle: 10 - 20° Helix Type: Normal Helix Material: High Speed Steel Overall Length: 123mm Point Angle: 118° Series: S100 Shank Diameter Tolerance: f11 Standards Met: BS 328 DIN

Zoro Tools

Series S100 HSS straight shank stub drills are designed as general purpose drills for use on automatics and turret lathes. Suitable for drilling steels, cast iron, alloy steel and malleable cast iron. Features and Benefits Manufactured form HSS for strength and rigidity when machining Black oxide coating for additional heat and wear resistance Designed for use on automatic ans turret lathes Typical Applications Drilling Steels Cast iron Alloy steel Malleable cast iron Standards Manufactured to BS328: Part 1: 1986/DIN 1897.
