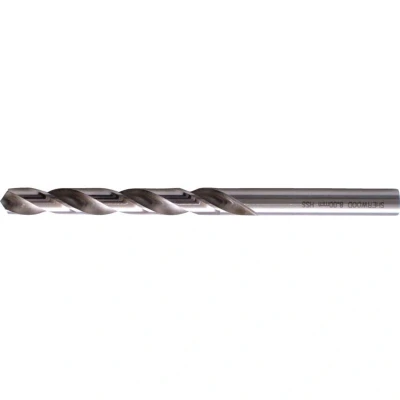

Sherwood 17/64" HSS S/S Bright Jobber Drill

ManoMano

Sherwood: 17/64" HSS S/S Bright Jobber Drill Series J100 - Inch General purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118, Helix angle: normal, web thickness: standard, relief angle: 10-20, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS 328/DIN338RN. Bright Finish Drills with a bright finish are supplied in the as-ground condition and such tools are used generally in the machining of non-ferrous materials. MPN: SHR0250243S EAN: 5036140271081 17/64" HSS S/S Bright Jobber Drill Attributes: Coolant Delivery: External Cutting Direction: Right Hand Drill Diameter: 17/64in Drill Diameter Tolerance: h8 Finish/Coating: Bright Flute Construction: Ground Flute Flute Length: 69mm Flute Type: Spiral Helix Type: Normal Helix Material: High Speed Steel Number of Flutes: 2 Overall Length: 109mm Point Angle: 118° Point Type: Split Point Series: J100 Shank Diameter Tolerance: f11 Standards

Zoro Tools

Series J100 - Inch General purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118, helix angle: normal, web thickness: standard, relief angle: 10-20, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS 328/DIN338RN. Bright Finish Drills with a bright finish are supplied in the as-ground condition and such tools are used generally in the machining of non-ferrous materials.
