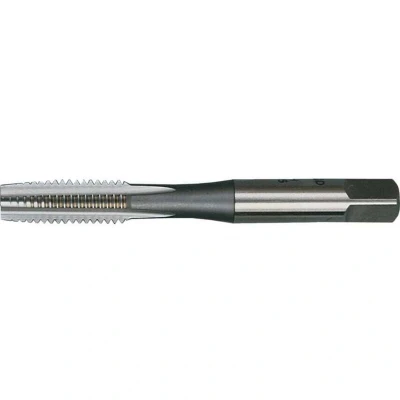

Sherwood 18X1.50MM HSSGT Straight Flute Taper Tap
Description
ManoMano
Sherwood: 18X1.50MM HSSGT Staight Flute Tape Tap IS0 529 Straight Flute Individual Sizes. (1) Diameter and pitch not mentioned in ISO. Sherwood taper taps are used to start cutting the thread is tapered back from the end 6 to 10 threads before a fully threaded diameter is reached this allows the tap to be positioned easily and correctly before it starts to cut the thread. MPN: SHR0850540A EAN: 5036140277939 18X1.50MM HSSGT Staight Flute Tape Tap Attributes: Chamfer: Taper Class of Fit: 6H Dimensions Standard: ISO 529 Finish/Coating: Bright Material: High Speed Steel Material Application: Steel Cast Iron Stainless Steel Material Grade: M2 Number of Flutes: 4 Overall Length: 95.0mm Pitch: 1.5 Shank Diameter: 14.0mm Square Width: 11.2mm Tap Type: Straight Flute Thread Direction: Right Hand Thread Length: 45.0mm Thread Size: M18 Thread Standard: Metric Fine
Description
(2)
Sherwood: 18X1.50MM HSSGT Staight Flute Tape Tap IS0 529 Straight Flute Individual Sizes. (1) Diameter and pitch not mentioned in ISO. Sherwood taper taps are used to start cutting the thread is tapered back from the end 6 to 10 threads before a fully threaded diameter is reached this allows the tap to be positioned easily and correctly before it starts to cut the thread. MPN: SHR0850540A EAN: 5036140277939 18X1.50MM HSSGT Staight Flute Tape Tap Attributes: Chamfer: Taper Class of Fit: 6H Dimensions Standard: ISO 529 Finish/Coating: Bright Material: High Speed Steel Material Application: Steel Cast Iron Stainless Steel Material Grade: M2 Number of Flutes: 4 Overall Length: 95.0mm Pitch: 1.5 Shank Diameter: 14.0mm Square Width: 11.2mm Tap Type: Straight Flute Thread Direction: Right Hand Thread Length: 45.0mm Thread Size: M18 Thread Standard: Metric Fine
Zoro ToolsIS0 529 Straight Flute Individual Sizes. (1) Diameter and pitch not mentioned in ISO.
