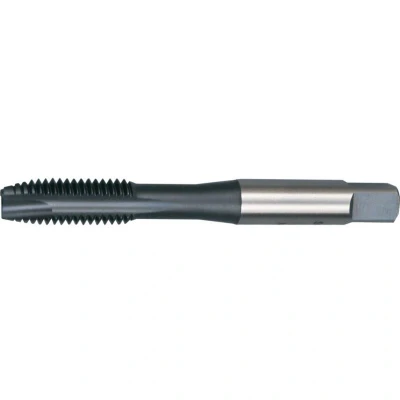

Sherwood 22X1.50MM HSSGT Spiral Point Tap
Description
ManoMano
Sherwood: 22X1.50MM HSSGT Spiral Point Tap IS0 529 - Spiral Point/Gun Nose A spiral point tap has a chiselled point that pushes the metal chips ahead of the forming threads. This is useful when tapping through-holes (holes that extend through the work piece). Spiral Point taps are not recommended for use in blind holes: the accumulation of chips can bind and break the tap. MPN: T7317766 EAN: 5036140181373 22X1.50MM HSSGT Spiral Point Tap Attributes: Class of Fit: 6H Dimensions Standard: ISO 529 Finish/Coating: Steam Tempered Material: High Speed Steel Material Application: Steel Cast Iron Stainless Steel Material Grade: M2 Number of Flutes: 3 Overall Length: 118.0mm Pitch: 1.5 Shank Diameter: 16.0mm Square Width: 12.5mm Tap Type: Spiral Point Thread Direction: Right Hand Thread Length: 38.0mm Thread Size: M22 Thread Standard: Metric Coarse
Description
(2)
Sherwood: 22X1.50MM HSSGT Spiral Point Tap IS0 529 - Spiral Point/Gun Nose A spiral point tap has a chiselled point that pushes the metal chips ahead of the forming threads. This is useful when tapping through-holes (holes that extend through the work piece). Spiral Point taps are not recommended for use in blind holes: the accumulation of chips can bind and break the tap. MPN: T7317766 EAN: 5036140181373 22X1.50MM HSSGT Spiral Point Tap Attributes: Class of Fit: 6H Dimensions Standard: ISO 529 Finish/Coating: Steam Tempered Material: High Speed Steel Material Application: Steel Cast Iron Stainless Steel Material Grade: M2 Number of Flutes: 3 Overall Length: 118.0mm Pitch: 1.5 Shank Diameter: 16.0mm Square Width: 12.5mm Tap Type: Spiral Point Thread Direction: Right Hand Thread Length: 38.0mm Thread Size: M22 Thread Standard: Metric Coarse
Zoro ToolsIS0 529 - Spiral Point/Gun Nose
Product specifications
