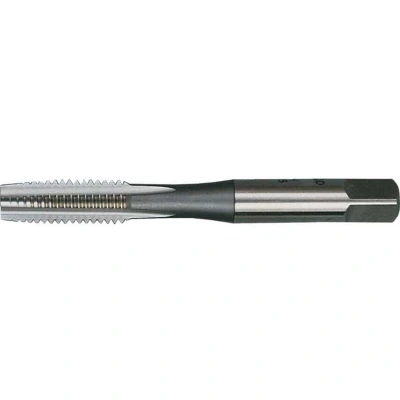

Sherwood 3.0X0.35MM HSSGT Straight Flute Taper Tap
Description
ManoMano
Sherwood: 3.0X0.35MM HSSGT Straight Flute Taper Tap IS0 529 Straight Flute Individual Sizes. (1) Diameter and pitch not mentioned in ISO. Sherwood taper taps are used to start cutting the thread is tapered back from the end 6 to 10 threads before a fully threaded diameter is reached this allows the tap to be positioned easily and correctly before it starts to cut the thread. MPN: T7317216 EAN: 5036140277694 3.0X0.35MM HSSGT Straight Flute Taper Tap Attributes: Chamfer: Taper Class of Fit: 6H Dimensions Standard: ISO 529 Finish/Coating: Bright Material: High Speed Steel Material Application: Steel Cast Iron Stainless Steel Material Grade: M2 Number of Flutes: 3 Overall Length: 48.0mm Pitch: 0.35 Shank Diameter: 3.2mm Square Width: 2.5mm Tap Type: Straight Flute Thread Direction: Right Hand Thread Length: 11.0mm Thread Size: M3 Thread Standard: Metric Fine
Description
(2)
Sherwood: 3.0X0.35MM HSSGT Straight Flute Taper Tap IS0 529 Straight Flute Individual Sizes. (1) Diameter and pitch not mentioned in ISO. Sherwood taper taps are used to start cutting the thread is tapered back from the end 6 to 10 threads before a fully threaded diameter is reached this allows the tap to be positioned easily and correctly before it starts to cut the thread. MPN: T7317216 EAN: 5036140277694 3.0X0.35MM HSSGT Straight Flute Taper Tap Attributes: Chamfer: Taper Class of Fit: 6H Dimensions Standard: ISO 529 Finish/Coating: Bright Material: High Speed Steel Material Application: Steel Cast Iron Stainless Steel Material Grade: M2 Number of Flutes: 3 Overall Length: 48.0mm Pitch: 0.35 Shank Diameter: 3.2mm Square Width: 2.5mm Tap Type: Straight Flute Thread Direction: Right Hand Thread Length: 11.0mm Thread Size: M3 Thread Standard: Metric Fine
Zoro ToolsIS0 529 Straight Flute Individual Sizes. (1) Diameter and pitch not mentioned in ISO.
