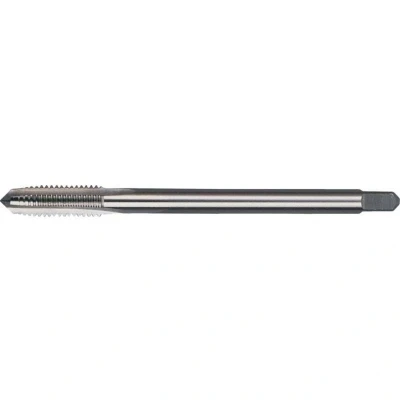

Sherwood 3.0X0.50MM HSSGT Long Shank Taper Tap
Description
ManoMano
Sherwood: 3.0X0.50MM HSSGT Long Shank Tape Tap Straight Flute Long Series Sherwood taper taps are used to start cutting the thread is tapered back from the end 6 to 10 threads before a fully threaded diameter is reached this allows the tap to be positioned easily and correctly before it starts to cut the thread. MPN: SHR0850230G EAN: 5036140179028 3.0X0.50MM HSSGT Long Shank Tape Tap Attributes: Chamfer: Taper Class of Fit: 6H Dimensions Standard: ISO 529 Finish/Coating: Bright Material: High Speed Steel Material Grade: M2 Number of Flutes: 3 Overall Length: 66.0mm Pitch: 0.50 Shank Diameter: 2.24mm Square Width: 1.8mm Tap Type: Straight Flute Extension Thread Direction: Right Hand Thread Length: 11mm Thread Size: M3 Thread Standard: Metric Coarse
Description
(1)
Sherwood: 3.0X0.50MM HSSGT Long Shank Tape Tap Straight Flute Long Series Sherwood taper taps are used to start cutting the thread is tapered back from the end 6 to 10 threads before a fully threaded diameter is reached this allows the tap to be positioned easily and correctly before it starts to cut the thread. MPN: SHR0850230G EAN: 5036140179028 3.0X0.50MM HSSGT Long Shank Tape Tap Attributes: Chamfer: Taper Class of Fit: 6H Dimensions Standard: ISO 529 Finish/Coating: Bright Material: High Speed Steel Material Grade: M2 Number of Flutes: 3 Overall Length: 66.0mm Pitch: 0.50 Shank Diameter: 2.24mm Square Width: 1.8mm Tap Type: Straight Flute Extension Thread Direction: Right Hand Thread Length: 11mm Thread Size: M3 Thread Standard: Metric Coarse
