Sherwood 3/16" X 250MM O/A HSS S/S Drill

Sherwood
Sherwood 3/16" X 250MM O/A HSS S/S Drill

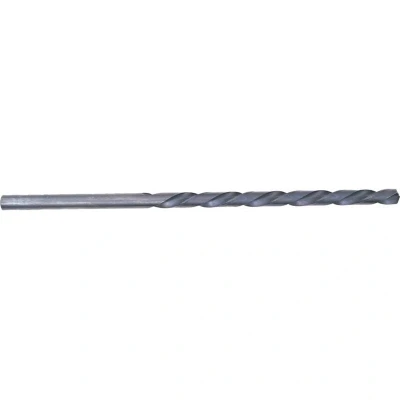

Image of Sherwood 3/16" X 250MM O/A HSS S/S Drill

Prices from

17.39

	£ 17.39	To Shop
	£ 18.39	To Shop

Description

ManoMano @@@Z/ig3/eTAXzevS421n/igA4/vRvBzBJ9@@@: 3/16" X 250MM O/A HSS S/S Dill Series E100 HSS Straight Shank Extra Length Drills - Inch For steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118. Helix angle: normal. Web thickness: standard. Relief angle: 10-20. Tolerance of diameter: h8. Tolerance of shank: f11. To BS 328 : Part 1 : 1986. MPN: SHR0242013A EAN: 5036140162839 3/16" X 250MM O/A HSS S/S Dill Attributes: Coolant Delivery: External Cutting Direction: Right Hand Drill Diameter: 3/16in Drill Diameter Inch: 3/16 Drill Diameter Tolerance: h8 Drill Length Type: Extra Length Finish/Coating: Steam Tempered Flute Length: 200mm Flute Type: Spiral Helix Angle: 30° Helix Type: Normal Helix Material: High Speed Steel Number of Flutes: 2 Overall Length: 250mm Point Angle: 118° Point Type: Standard Series: E100 Shank Diameter Tolerance: f11 Shank Type: Straight Standards Met: BS 328 Web Thickness: Standard

Compare webshops (2)

Shop

Price

£ 17.39

To Shop

£ 18.39

To Shop

Description (2)

ManoMano

@@@Z/ig3/eTAXzevS421n/igA4/vRvBzBJ9@@@: 3/16" X 250MM O/A HSS S/S Dill Series E100 HSS Straight Shank Extra Length Drills - Inch For steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118. Helix angle: normal. Web thickness: standard. Relief angle: 10-20. Tolerance of diameter: h8. Tolerance of shank: f11. To BS 328 : Part 1 : 1986. MPN: SHR0242013A EAN: 5036140162839 3/16" X 250MM O/A HSS S/S Dill Attributes: Coolant Delivery: External Cutting Direction: Right Hand Drill Diameter: 3/16in Drill Diameter Inch: 3/16 Drill Diameter Tolerance: h8 Drill Length Type: Extra Length Finish/Coating: Steam Tempered Flute Length: 200mm Flute Type: Spiral Helix Angle: 30° Helix Type: Normal Helix Material: High Speed Steel Number of Flutes: 2 Overall Length: 250mm Point Angle: 118° Point Type: Standard Series: E100 Shank Diameter Tolerance: f11 Shank Type: Straight Standards Met: BS 328 Web Thickness: Standard

Zoro Tools

Series E100 HSS Straight Shank Extra Length Drills - Inch For steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118. Helix angle: normal. Web thickness: standard. Relief angle: 10-20. Tolerance of diameter: h8. Tolerance of shank: f11. To BS 328 : Part 1 : 1986.
