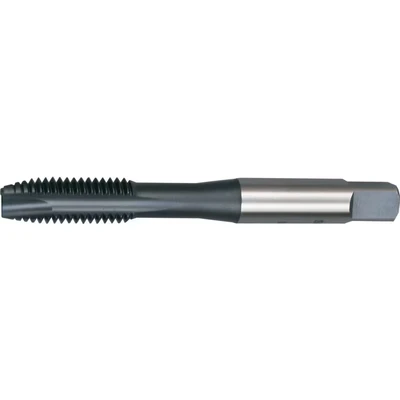

Sherwood 3/8"X16 BSW HSSGT Spiral Point Tap
Description
ManoMano
Sherwood: 3/8"X16 BSW HSSGT Spiral Point Tap IS0 529 - Spiral Point/Gun Nose A spiral point tap has a chiselled point that pushes the metal chips ahead of the forming threads. This is useful when tapping through-holes (holes that extend through the work piece). Spiral Point taps are not recommended for use in blind holes: the accumulation of chips can bind and break the tap. MPN: SHR0851380E EAN: 5036140280373 3/8"X16 BSW HSSGT Spiral Point Tap Attributes: Class of Fit: 6H Dimensions Standard: ISO 529 Finish/Coating: Steam Tempered Material: High Speed Steel Material Grade: M2 Number of Flutes: 4 Overall Length: 80.0mm Pitch: 16 Series: None N/A Shank Diameter: 10.0mm Square Width: 8.0mm Tap Type: Spiral Point Tapping Depth: Nonemm N/Amm Thread Direction: Right Hand Thread Length: 24.0mm Thread Size: 3/8in. Thread Standard: BSW
Description
(2)
Sherwood: 3/8"X16 BSW HSSGT Spiral Point Tap IS0 529 - Spiral Point/Gun Nose A spiral point tap has a chiselled point that pushes the metal chips ahead of the forming threads. This is useful when tapping through-holes (holes that extend through the work piece). Spiral Point taps are not recommended for use in blind holes: the accumulation of chips can bind and break the tap. MPN: SHR0851380E EAN: 5036140280373 3/8"X16 BSW HSSGT Spiral Point Tap Attributes: Class of Fit: 6H Dimensions Standard: ISO 529 Finish/Coating: Steam Tempered Material: High Speed Steel Material Grade: M2 Number of Flutes: 4 Overall Length: 80.0mm Pitch: 16 Series: None N/A Shank Diameter: 10.0mm Square Width: 8.0mm Tap Type: Spiral Point Tapping Depth: Nonemm N/Amm Thread Direction: Right Hand Thread Length: 24.0mm Thread Size: 3/8in. Thread Standard: BSW
Zoro ToolsIS0 529 - Spiral Point/Gun Nose
