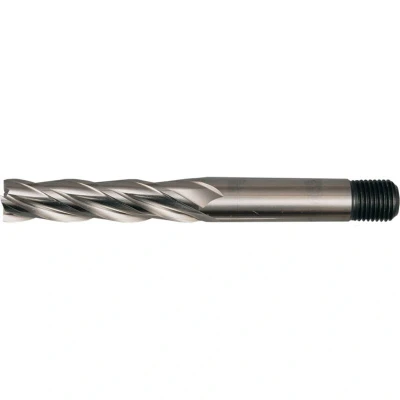

Sherwood 4.00MM HSS Threaded Shank Multi Flute Long Series End Mills

ManoMano

Sherwood: 4.00MM HSS Theaded Shank Multi Flute Long Seies End Mills Long Series E430T. Used for profile milling and producing open slots. Bright finish. Flute type: 30 helix. Manufactured to BS 122 : Part 4 : 1980. Metric Tolerances: Diameter: up to 38.00. Tolerance: +0.0630, -0.0130. Diameter: Over 38.00. Tolerance: +0.1250, -0.0000. MPN: E1644040 EAN: 5036140275102 4.00MM HSS Theaded Shank Multi Flute Long Seies End Mills Attributes: Cutter Diameter: 4.0mm Cutter Diameter Tolerance: k10 Cutting Direction: Right Hand Finish/Coating: Bright Flute Length: 25.5mm Flute Type: Helical Length Type: Long Material: High Speed Steel Material Grade: M2 Number of Flutes: 4 Overall Length: 70.0mm Plunge Type: Non-centre Cutting Series: E304T Shank Diameter: 6.0mm Shank Diameter Tolerance: h6 Shank Type: Threaded Standards Met: BS 122

Zoro Tools

Long Series E430T. Used for profile milling and producing open slots. Bright finish. Flute type: 30 helix. Manufactured to BS 122 : Part 4 : 1980. Metric Tolerances: Diameter: up to 38.00. Tolerance: +0.0630, -0.0130. Diameter: Over 38.00. Tolerance: +0.1250, -0.0000.
