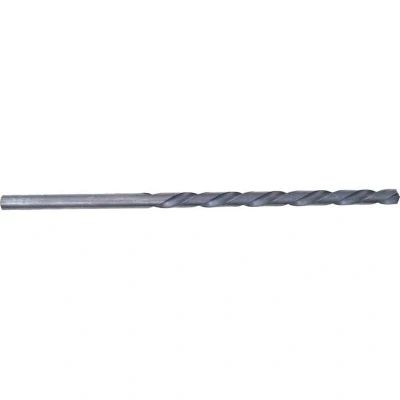

Sherwood 5.50MM X 200MM O/A HSS S/S Drill

ManoMano

@@@HBNpHXvftgZ9nb09axcZy9dMCi0MeVP9@@@: 5.50MM X 200MM O/A HSS S/S Dill Series E100 HSS Straight Shank Extra Length Drills Metric General-purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118, helix angle: normal, web thickness: standard, relief angle: 10 - 20, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS 328 : Part 1 : 1986. MPN: SHR0242120H EAN: 5036140163546 5.50MM X 200MM O/A HSS S/S Dill Attributes: Coolant Delivery: External Cutting Direction: Right Hand Drill Diameter: 5.5mm Drill Diameter Metric: 5.5 Drill Diameter Tolerance: h8 Drill Length Type: Extra Length Finish/Coating: Steam Tempered Flute Length: 150mm Flute Type: Spiral Helix Angle: 30° Helix Type: Normal Helix Material: High Speed Steel Number of Flutes: 2 Overall Length: 200mm Point Angle: 118° Point Type: Standard Series: E100 Shank Diameter Tolerance: f11 Shank Type: Straight Standards Met: BS 328 Web Thickness: Standard

Zoro Tools

Series E100 HSS Straight Shank Extra Length Drills Metric General-purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118, helix angle: normal, web thickness: standard, relief angle: 10 - 20, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS 328 : Part 1 : 1986.
