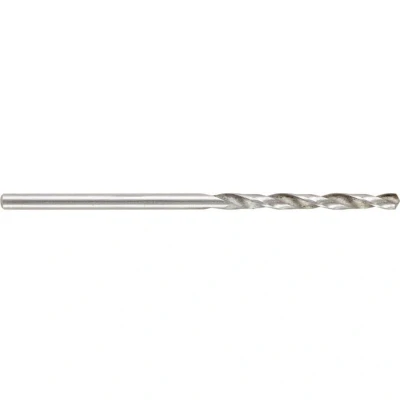

Sherwood 6.80MM HSS S/S Bright L/S Drill

ManoMano

Sherwood: 6.80MM HSS S/S Bight L/S Dill Series L100 HSS Straight Shank Long Series DrilLS Bright Finish - Metric General purpose drills to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. Point angle: 118, helix angle: normal, web thickness: normal, relief angle: 10 - 20, tolerance of diameter: h8, tolerance of f11. Manufactured to BS 328; Part 1: 1986, DIN 340 RN, ISO 494. Drills with a bright finish are supplied in the as-ground condition and such tools are used generally in the machining of non-ferrous materials. MPN: CL97040306.8 EAN: 5036140172784 6.80MM HSS S/S Bight L/S Dill Attributes: Coolant Delivery: External Cutting Direction: Right Hand Drill Diameter: 6.8mm Drill Diameter Metric: 6.8 Drill Diameter Tolerance: h8 Drill Length Type: Long Series Finish/Coating: Bright Flute Construction: Ground Flute Flute Length: 120mm Flute Type: Spiral Helix Angle: 30° Helix Type: Normal Helix Material: High

Zoro Tools

Series L100 HSS Straight Shank Long Series Drills Bright Finish - Metric General purpose drills to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. Point angle: 118, helix angle: normal, web thickness: normal, relief angle: 10 - 20, tolerance of diameter: h8, tolerance of f11. Manufactured to BS 328; Part 1: 1986, DIN 340 RN, ISO 494. Drills with a bright finish are supplied in the as-ground condition and such tools are used generally in the machining of non-ferrous materials.
