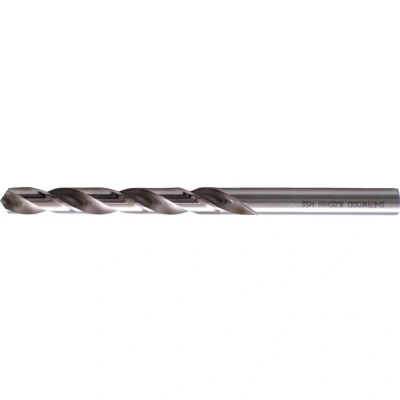

Sherwood 7/16" HSS S/S Bright Jobber Drill

ManoMano

Sherwood: 7/16" HSS S/S Bight Jobbe Dill Series J100 - Inch General purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118, Helix angle: normal, web thickness: standard, relief angle: 10-20, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS 328/DIN338RN. Bright Finish Drills with a bright finish are supplied in the as-ground condition and such tools are used generally in the machining of non-ferrous materials. MPN: SHR0250244E EAN: 5036140271197 7/16" HSS S/S Bight Jobbe Dill Attributes: Coolant Delivery: External Cutting Direction: Right Hand Drill Diameter: 7/16in Drill Diameter Inch: 7/16in Drill Diameter Tolerance: h8 Finish/Coating: Bright Flute Construction: Ground Flute Flute Length: 94mm Flute Type: Spiral Helix Type: Normal Helix Material: High Speed Steel Number of Flutes: 2 Overall Length: 142mm Point Angle: 118° Point Type: Split Point Series: J100 Shank Diameter

Zoro Tools

Series J100 - Inch General purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118, helix angle: normal, web thickness: standard, relief angle: 10-20, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS 328/DIN338RN. Bright Finish Drills with a bright finish are supplied in the as-ground condition and such tools are used generally in the machining of non-ferrous materials.
