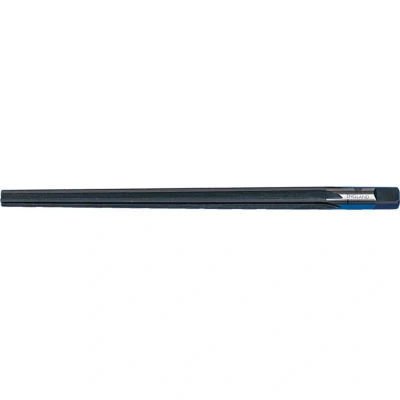

Sherwood 7/16" HSS S/S St/Fl Hand Taper Pin Reamer

ManoMano

Sherwood: 7/16" HSS S/S St/Fl Hand Tape Pin Reame Inch. Sherwood Taper Pin hand reamers are used to produce a close tolerance surface finish in taper holes to allow the fitting of hardened and ground taper pins in the building of jigs, fixtures and dies. Manufactured to BS 328 : Part 4 : 1990 and DIN 9A. INCH TOLERANCES: Diameter: Over 1/16 ~ up to 7/32. Tolerance: +0.0003, -0.0000. Diameter: Over 7/32 ~ up to 7/8. Tolerance: +0.0005, -0.0000. MPN: CL9775020-716 EAN: 5036140373587 7/16" HSS S/S St/Fl Hand Tape Pin Reame Attributes: Diameter: 7/16in Diameter Range Max: .443in Diameter Range Min: .3232in Flute Length: 5-3/4in Material: High Speed Steel Overall Length: 7-1/2in Reamer Diameter: 7/16in Shank Type: Taper Pin

Zoro Tools

Inch. Sherwood Taper Pin hand reamers are used to produce a close tolerance surface finish in taper holes to allow the fitting of hardened and ground taper pins in the building of jigs, fixtures and dies. Manufactured to BS 328 : Part 4 : 1990 and DIN 9A. INCH TOLERANCES: Diameter: Over 1/16" ~ up to 7/32". Tolerance: +0.0003, -0.0000. Diameter: Over 7/32" ~ up to 7/8". Tolerance: +0.0005, -0.0000.
