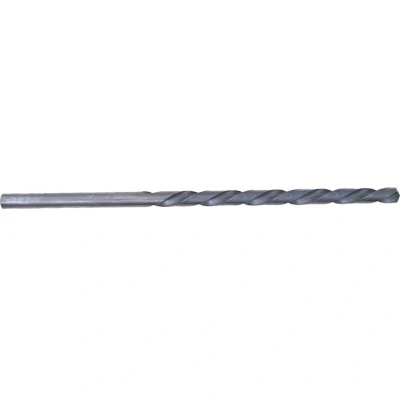

Sherwood 7/32" X 250MM O/A HSS S/S Drill

ManoMano

@@@3CuUkgDXUo2BEGBv8iRvgtDEt3TEMzMc@@@: 7/32" X 250MM O/A HSS S/S Dill Series E100 HSS Straight Shank Extra Length Drills - Inch For steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118. Helix angle: normal. Web thickness: standard. Relief angle: 10-20. Tolerance of diameter: h8. Tolerance of shank: f11. To BS 328 : Part 1 : 1986. MPN: SHR0242020H EAN: 5036140162907 7/32" X 250MM O/A HSS S/S Dill Attributes: Coolant Delivery: External Cutting Direction: Right Hand Drill Diameter: 7/32in Drill Diameter Inch: 7/32 Drill Diameter Tolerance: h8 Drill Length Type: Extra Length Finish/Coating: Steam Tempered Flute Length: 200mm Flute Type: Spiral Helix Angle: 30° Helix Type: Normal Helix Material: High Speed Steel Number of Flutes: 2 Overall Length: 250mm Point Angle: 118° Point Type: Standard Series: E100 Shank Diameter Tolerance: f11 Shank Type: Straight Standards Met: BS 328 Web Thickness: Standard

Zoro Tools

Series E100 HSS Straight Shank Extra Length Drills - Inch For steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118. Helix angle: normal. Web thickness: standard. Relief angle: 10-20. Tolerance of diameter: h8. Tolerance of shank: f11. To BS 328 : Part 1 : 1986.
