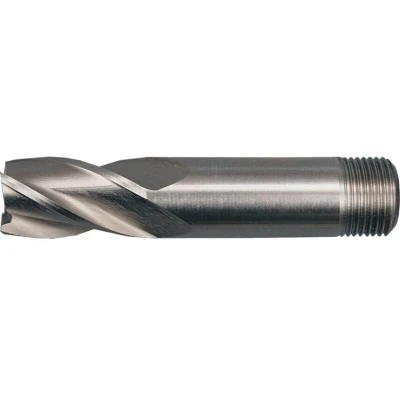

Sherwood 9/32" HSS Threaded Shank Multi Flute End Mills

ManoMano

Sherwood: 9/32" HSS Threaded Shank Multi Flute End Mills Short Series E410T. Used for profile milling and producing open slots. Bright finish. Flute type : 30 Helix. Manufactured to BS 122 : Part 4 : 1980. INCH TOLERANCES: DiaMeter: up to 1/2. Tolerance: +0.0025, -0.0005. Diameter: Over 1/2 ~. Tolerance: +0.0050, -0.0000. MPN: E1028018 EAN: 5036140368194 9/32" HSS Threaded Shank Multi Flute End Mills Attributes: Coolant Delivery: External Corner Radius: Nonemm N/Amm Cutter Diameter: 9/32in Cutter Diameter Tolerance: k10 Cutting Direction: Right Hand End Mill Type: End Mill Finish/Coating: Bright Flute Length: 19/32in Flute Type: Helical Helix Angle: 30° Length Type: Short Material: High Speed Steel Material Grade: M2 Number of Flutes: 4 Overall Length: 2-3/8in Plunge Type: Non-centre Cutting Reach Type: Standard Neck Series: E410T Shank Diameter: 3/8in Shank Diameter Tolerance: h6 Shank Type: Threaded Standards Met: BS 122

Zoro Tools

Short Series E410T. Used for profile milling and producing open slots. Bright finish. Flute type : 30 helix. Manufactured to BS 122 : Part 4 : 1980. INCH TOLERANCES: Diameter: up to 1/2". Tolerance: +0.0025, -0.0005. Diameter: Over 1/2" ~. Tolerance: +0.0050, -0.0000.
