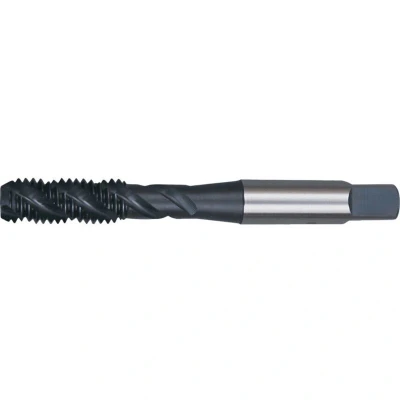

Sherwood NO.10X24 UNC HSSGT Spiral Flute Tap
Description
ManoMano
Sherwood: NO.10X24 UNC HSSGT Spiral Flute Tap IS0 529 - Spiral Flute Spiral flute taps are used for machine tapping of blind holes as the have a spiral flute that channels the swarf back behind the tap and out of the hole along the flute. MPN: SHR0850830F EAN: 5036140278578 NO.10X24 UNC HSSGT Spiral Flute Tap Attributes: Class of Fit: 2B Dimensions Standard: ISO 529 Finish/Coating: Steam Tempered Helix Angle: 45° Material: High Speed Steel Material Grade: M2 Number of Flutes: 3 Overall Length: 58.0mm Pitch: 24 Shank Diameter: 5.0mm Square Width: 4.00mm Tap Type: Spiral Flute Thread Direction: Right Hand Thread Length: 16.0mm Thread Size: No.10 Thread Standard: UNC
Description
(2)
Sherwood: NO.10X24 UNC HSSGT Spiral Flute Tap IS0 529 - Spiral Flute Spiral flute taps are used for machine tapping of blind holes as the have a spiral flute that channels the swarf back behind the tap and out of the hole along the flute. MPN: SHR0850830F EAN: 5036140278578 NO.10X24 UNC HSSGT Spiral Flute Tap Attributes: Class of Fit: 2B Dimensions Standard: ISO 529 Finish/Coating: Steam Tempered Helix Angle: 45° Material: High Speed Steel Material Grade: M2 Number of Flutes: 3 Overall Length: 58.0mm Pitch: 24 Shank Diameter: 5.0mm Square Width: 4.00mm Tap Type: Spiral Flute Thread Direction: Right Hand Thread Length: 16.0mm Thread Size: No.10 Thread Standard: UNC
Zoro ToolsIS0 529 - Spiral Flute
Product specifications
