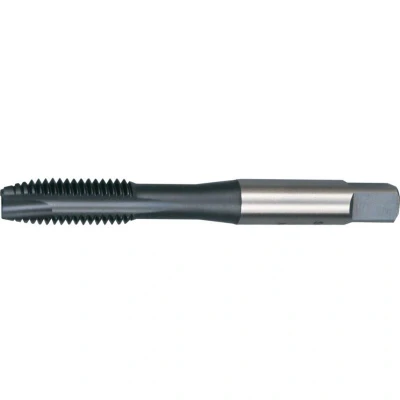

Sherwood NO.3X48 UNC HSSGT Spiral Point Tap

ManoMano

Sherwood: NO.3X48 UNC HSSGT Spiral Point Tap IS0 529 - Spiral point/gun nose are manufactured from HSS with a black oxide coating for added strength durability and a prolonged tool lifespan. Features and Benefits HSS construction for added tool strength Black oxide coating protects angainst wear caused by use and heat Class 2 thread forms / medium fit tolerance Precision ground flutes for greater tool accuracy Typical Applications Tapping Standards Tap dimensions to ISO529 MPN: SHR0850780E EAN: 5036140388598 NO.3X48 UNC HSSGT Spiral Point Tap Attributes: Class of Fit: 2B Dimensions Standard: ISO 529 Finish/Coating: Steam Tempered Material: High Speed Steel Material Grade: M2 Number of Flutes: 3 Overall Length: 44.5mm Pitch: 48 Shank Diameter: 2.8mm Square Width: 2.24mm Tap Type: Spiral Point Thread Direction: Right Hand Thread Length: 9.5mm Thread Size: No.3 Thread Standard: UNC

Zoro Tools

IS0 529 - Spiral point/gun nose are manufactured from HSS with a black oxide coating for added strength durability and a prolonged tool lifespan. Features and Benefits HSS construction for added tool strength Black oxide coating protects angainst wear caused by use and heat Class 2 thread forms / medium fit tolerance Precision ground flutes for greater tool accuracy Typical Applications Tapping Standards Tap dimensions to ISO529
