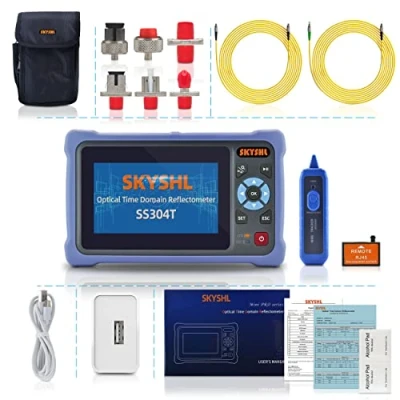

SKYSHL 1310nm/26dB+1550nm/24dB SM Fiber OTDR Tester (Built in OPM+OLS+VFL+Event Map) 4.3inches Touch Screen Testing Compatible with SC+FC+ST+LC/UPC&APC Connector SS304T 2A1

1310nm26dB+1550nm/24dB-SS304T-2A1 is a very mini smart SM OTDR fiber tester. It has dual wavelengths of 1310nm+1550nm and a dynamic range of 26dB+24dB.The maximum test distance is up to 96km. OTDR+OPM+OLS+VFL+RJ45 Cable Tracker-SS304T-2A1 optical time domain reflectometer(OTDR-1310nm+1550nm/26dB+24dB),visual fault locator(VFL-Max test distance 10km), optical power meter(OPM-800-1700nm/-50~+26db),optical light source(OLS-1310nm+1550nm),optical attenuation tester(1310nm+1550nm) and RJ45 cable tester(>300m),these rich functions provide users with great convenience. Ultra-short EDZ/ADZ-SS304T-2A1 adopts the most advanced optical technology and analysis algorithm to provide users with a very short event dead zone(SM is 2.5m) and attenuation dead zone(SM is 8m), thereby detecting for users Short-distance failure provides a solution.(Because the pulse width affects the size of the dead zone, it is recommended to use a narrow pulse width for adjacent events, and a wide pulse width is recommended when measuring the far end of the fiber) Intelligence and durability-Auto OTDR, expert OTDR, event map intelligent graphical analysis function allows you to make full use of all the functions of OTDR, and raise the automation to a new level. Untrained technicians can also become Testing experts. SS304T-2A1 adopts a sturdy shell, which is shockproof and waterproof. In addition, it adopts a large-capacity lithium battery with a use time of up to 15 hours, which is very suitable for long-term outdoor work. Compatible with SC+FC+ST+LC/UPC&APC-SS304T-2A1 provides 2 patch cord(FC/UPC-FC/UPC and FC/UPC-FC/APC) and SC, ST, FC, LC connectors, and it is compatible with SC/UPC, ST/UPC, FC/UPC, LC/UPC connectors and SC/APC, ST/APC, FC/APC, LC/APC connectors. Rich Accessories-SS304T-2A1 adopts 4.3-inch capacitive high-definition touch screen and keyboard control, and provides a Type C USB port for data communication with external devices. The test curve(.sor file) can be stored in the internal storage or on the TF card(8G can store 200,000 sets of test curves),so that the data simulation software can process,share and print reports.In addition,SS304T-2A1 supports English, Spanish,French and Portuguese.
