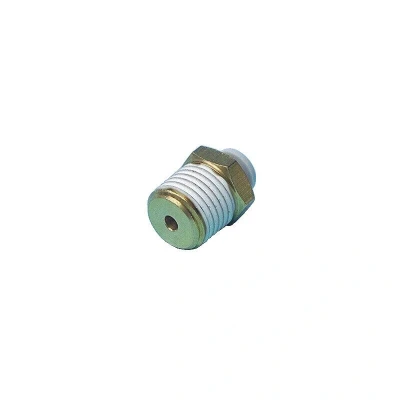

SMC KQ2S10 03AS Straight One touch Male 10 to R3/8

ManoMano

SMC: KQ2S10-03AS Straight One-touch Male 10 to R3/8 KQ2S Series Straight fitting with internal hexagon head, 360 pivotable. Mounted using an Allen key which is an advantage in areas with restricted space. Colour: white. Push-Fit Fittings Quick and simple tube insertion. Tapered threads have a re-usable thread seal. Pressure range: 0.9bar min to +10bar max. Temp range: -20C min to +70C max. Tube suitability: nylon, polyurethane. MPN: KQ2S10-03AS EAN: 0713049102146 KQ2S10-03AS Straight One-touch Male 10 to R3/8 Attributes: Connection Type: Tube x BSPT MFR Part No.: KQ2S10-03AS Material: Brass Maximum Pressure: 1 Mpa Operating Temperature Range: -5 to +60°C Overall Length: 25.1mm Pressure Range: ?100 kPa to 1 Mpabar Thread Size: R3/8 - Rc3/8in Thread Sizes Male: 3/8in Thread Type: BSPT Tube Size: 10mm Weight Each: 23.2g

Zoro Tools

KQ2S Series Straight fitting with internal hexagon head, 360 pivotable. Mounted using an Allen key which is an advantage in areas with restricted space. Colour: white. Push-Fit Fittings Quick and simple tube insertion. Tapered threads have a re-usable thread seal. Pressure range: 0.9bar min to +10bar max. Temp range: -20C min to +70C max. Tube suitability: nylon, polyurethane.
