Sourcingmap 10 Pcs ON/Off 2 Position 3 Poles SPDT Right Angle Panel PCB Slide Switch

UXCELL
Sourcingmap 10 Pcs ON/Off 2 Position 3 Poles SPDT Right Angle Panel PCB Slide Switch

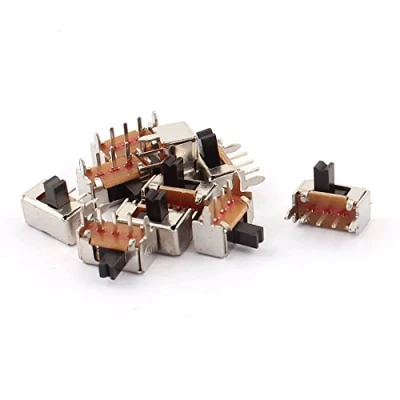

Image of Sourcingmap 10 Pcs ON/Off 2 Position 3 Poles SPDT Right Angle Panel PCB Slide Switch

Prices from

£ 6.39

To Shop

Description

Amazon Product Name : Slide Switch;Model : SK12D07V-G3;Action Type : SPDT;Contact Type : ON/ON, 2 Positions Poles Quantity : 3;Working Power : 0.5A 50V DC;Contact Resistance : 30mOhm Max;Insulation Resistance : 100mOhm Min at 500V DC Withstand Voltage : AC 500V for 1 min;Pole Size(Each One) : 3 x 0.5mm/ 0.12" x 0.02" ( L * W);Pole Pitch : 2mm / 0.079";Main Body Size(not include Pole & Knob) : 8.7 x 4.6 x 4.4mm / 0.34" x 0.18" x 0.17"(L*W*H) Switch Total Size : 8.7 x 7.2 x 7.5mm/ 0.34" x 0.28" x 0.29" (L * W* H);Knob Size : 2 x 2 x 3mm/ 0.08" x 0.08" x 0.12" (L * W * H);Material(External) : Plastic, Metal Main Color : Silver Tone, Black;Weight : 7g;Package Content : 10 x Slide Switch

Compare webshops (1)

Shop

Price

£ 6.39

To Shop

Description (1)

Product Name : Slide Switch;Model : SK12D07V-G3;Action Type : SPDT;Contact Type : ON/ON, 2 Positions Poles Quantity : 3;Working Power : 0.5A 50V DC;Contact Resistance : 30mOhm Max;Insulation Resistance : 100mOhm Min at 500V DC Withstand Voltage : AC 500V for 1 min;Pole Size(Each One) : 3 x 0.5mm/ 0.12" x 0.02" ( L * W);Pole Pitch : 2mm / 0.079";Main Body Size(not include Pole & Knob) : 8.7 x 4.6 x 4.4mm / 0.34" x 0.18" x 0.17"(L*W*H) Switch Total Size : 8.7 x 7.2 x 7.5mm/ 0.34" x 0.28" x 0.29" (L * W* H);Knob Size : 2 x 2 x 3mm/ 0.08" x 0.08" x 0.12" (L * W * H);Material(External) : Plastic, Metal Main Color : Silver Tone, Black;Weight : 7g;Package Content : 10 x Slide Switch
