Sourcingmap 50 Pcs ON/ON 2 Position 3 Pin 1P2T SPDT Panel PCB Mini Slide Switch Right Angle

sourcing map
Sourcingmap 50 Pcs ON/ON 2 Position 3 Pin 1P2T SPDT Panel PCB Mini Slide Switch Right Angle

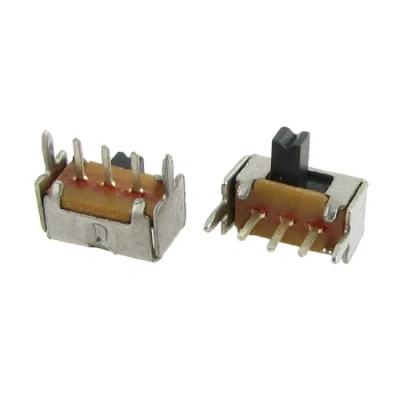

Image of Sourcingmap 50 Pcs ON/ON 2 Position 3 Pin 1P2T SPDT Panel PCB Mini Slide Switch Right Angle

Prices from

£ 8.39

To Shop

Description

Amazon Product Name : Slide Switch;Model : SK-12D07VG3;Action Type : SPDT;Contact Type : ON/ON, 2 Positions Pins Quantity : 3;Working Power : 0.5A 50V DC;Contact Resistance : 30mΩ Max;Insulation Resistance : 100mΩ Min at 500V DC Withstand Voltage : AC 500V for 1 min;Pins Size(Each One) : 3 x 0.5mm/ 0.12" x 0.02" ( L * W);Pin Pitch : 2mm / 0.079";Main Body Size(not include Pins & Knob) : 9 x 4.4 x 4.2mm / 0.35" x 0.17" x 0.16"(L*W*H) Switch Total Size : 9 x 7 x 7.5mm/ 0.35" x 0.27" x 0.29" (L * W* H);Knob Size : 2 x 2 x 3mm/ 0.08" x 0.08" x 0.12" (L * W * H);Material(External) : Plastic, Metal Main Color : Silver Tone, Black;Weight : 24g;Package Content : 50±2% x Slide Switch, Weight: 6.25E-4 Pounds, Manufacturer: Sourcingmap

Compare webshops (1)

Shop

Price

£ 8.39

To Shop

Description (1)

Product Name : Slide Switch;Model : SK-12D07VG3;Action Type : SPDT;Contact Type : ON/ON, 2 Positions Pins Quantity : 3;Working Power : 0.5A 50V DC;Contact Resistance : 30mΩ Max;Insulation Resistance : 100mΩ Min at 500V DC Withstand Voltage : AC 500V for 1 min;Pins Size(Each One) : 3 x 0.5mm/ 0.12" x 0.02" ( L * W);Pin Pitch : 2mm / 0.079";Main Body Size(not include Pins & Knob) : 9 x 4.4 x 4.2mm / 0.35" x 0.17" x 0.16"(L*W*H) Switch Total Size : 9 x 7 x 7.5mm/ 0.35" x 0.27" x 0.29" (L * W* H);Knob Size : 2 x 2 x 3mm/ 0.08" x 0.08" x 0.12" (L * W * H);Material(External) : Plastic, Metal Main Color : Silver Tone, Black;Weight : 24g;Package Content : 50±2% x Slide Switch, Weight: 6.25E-4 Pounds, Manufacturer: Sourcingmap
