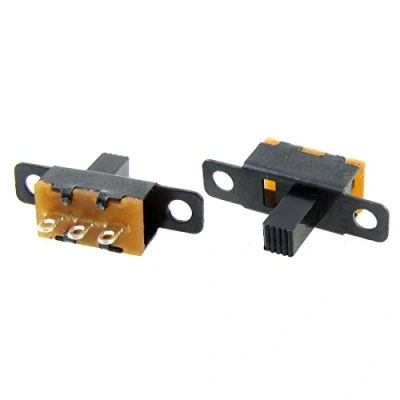

Sourcingmap 50 Pcs X SS12F15G6 2 Position 1P2T SPDT Panel Mount Mini Slide Switch Solder Lug 6mm Knob

sourcing map
Sourcingmap 50 Pcs X SS12F15G6 2 Position 1P2T SPDT Panel Mount Mini Slide Switch Solder Lug 6mm Knob

Image of Sourcingmap 50 Pcs X SS12F15G6 2 Position 1P2T SPDT Panel Mount Mini Slide Switch Solder Lug 6mm Knob

Prices from

£ 9.69

To Shop

Description

Amazon Product Name : Slide Switch;Model : SS-12F15G6;Action Type : SPDT Power : DC 50V 0.5A;Terminal Quantity : 3;Terminal Length : 2mm/ 0.08" Contact Resistance : 30mΩ Max;Insulation Resistance : 100mΩ Min at 500V DC;Withstand Voltage : AC 500V for 1 min Overall Size : 19.7 x 6 x 13mm/ 0.77" x 0.24" x 0.51"(L*W*H);Knob Size : 3 x 3 x 6mm / 0.12" x 0.12" x 0.24"(L*W*H);Material(External) : Plastic, Metal Main Color : Silver Tone, Black;Weight : 40g;Package Content : 50 Pcs(±2%) x Slide Switch, Manufacturer: Sourcingmap

Compare webshops (1)

Shop

Price

£ 9.69

To Shop

Description (1)

Product Name : Slide Switch;Model : SS-12F15G6;Action Type : SPDT Power : DC 50V 0.5A;Terminal Quantity : 3;Terminal Length : 2mm/ 0.08" Contact Resistance : 30mΩ Max;Insulation Resistance : 100mΩ Min at 500V DC;Withstand Voltage : AC 500V for 1 min Overall Size : 19.7 x 6 x 13mm/ 0.77" x 0.24" x 0.51"(L*W*H);Knob Size : 3 x 3 x 6mm / 0.12" x 0.12" x 0.24"(L*W*H);Material(External) : Plastic, Metal Main Color : Silver Tone, Black;Weight : 40g;Package Content : 50 Pcs(±2%) x Slide Switch, Manufacturer: Sourcingmap
