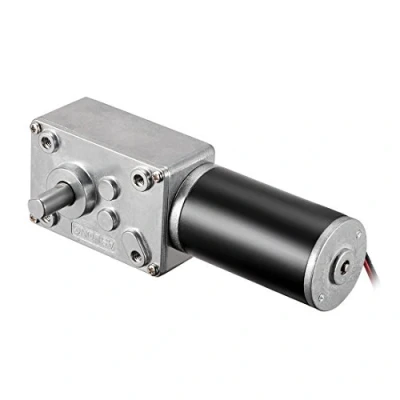

sourcingmap DC 24V 160RPM Worm Gear Motor 3kg cm Reversible High Torque Speed Reduce Turbine Electric Gearbox 8mm Shaft

Technical Specification: Rated Voltage: 24V DC; No-Load Speed: 160RPM; No-Load Current: 80mA; Rated Torque: 3kg-cm / 2.6lb.in; Stall torque: 11kg-cm / 9.5lb.in; Mounting Screw Size: M4 (not included). Dimensions: Output Shaft Diameter: 8mm; DC Motor Body Dimensions: 31 x 56.5mm / 1.22" x 2.22"(D*L); Gear Box Dimensions: 58 x 40 x 35mm / 2.28" x 1.57" x 1.37"(L*W*H). Feature - Gear DC Motor with Micro-Turbine Worm, change the motor rotation by changing the wiring-connection . With self-lock function, the output axis will be fixed when the motor is without electricity. D-Shaped Output Shaft, arranged vertically with the motor shaft and is relatively short, fit for different occasions that require special installation size. Application: Bank Equipment, Safe Box, Paper Feeder, Intelligent Gas Meter, Machine, Ad Equipment, Analysis Instrument, Electronic Game Machine, Remote Control Curtains, Locks, Paper Shredders, Copying Machines, and Safes Inner.
