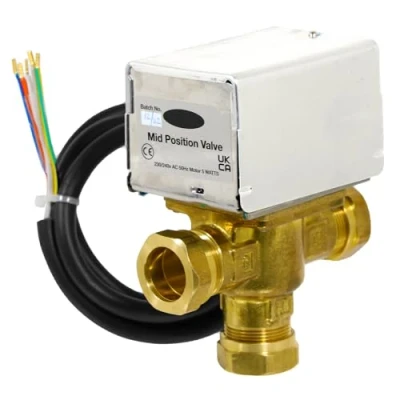

SPARES2GO 22mm Motorised 3 Port Mid Position 5 Wire Valve for Central Heating Boiler Systems

SPARES2GO 22mm Motorised 3 Port Mid-Position 5 Wire Valve For use on fully pumped systems which when correctly wired with an appropriate room thermostat, cylinder thermostat and programmer will control the water flow from the boiler to either to hot water only, heating only, or to both simultaneously. Supply Voltage: 240V AC 50Hz -- Power Consumption: 6W -- Operating Temperature Range: +5 to +88°C -- Cable Length: 1 Metre Max. Differential Pressure: = 1Bar -- Max. Static Pressure: 10.0 Bar -- Max. Ambient Temperature: 52°C Can be vertically or horizontally mounted -- Compression fittings included -- Auxiliary switch -- Switch rating 3A resistive -- Integrated manual lever for commissioning purposes -- Installation instructions included -- Arrives boxed, Weight: 2.535316013 Pounds, Manufacturer: SPARES2GO
