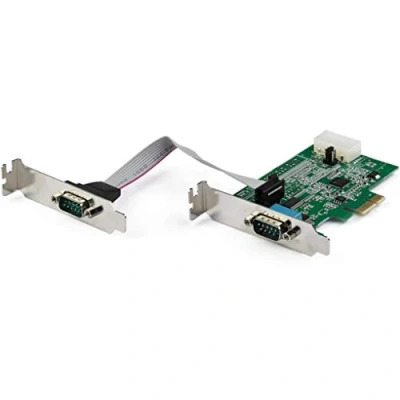

StarTech.com 2 port PCI Express RS232 Serial Adapter Card PCIe Host Controller to DB9 16950 UART Low Profile Expansion Windows, macOS, Linux (PEX2S953LP)

Startech Rs232 2 Port Pcie Pci-e Expansion Card. Expand your system´s connectivity with the StarTech.com 2-Port RS232 PCIe Expansion Card. This card adds two reliable DB9 serial ports, enabling high-speed communication (up to 921.6Kbps) with devices like printers and modems. Featuring a 16950 UART and ASIX AX99100 chipset, it offers advanced performance with a 256-byte FIFO buffer. Enjoy flexible installation with pre-installed low-profile and included full-profile brackets. Compatible with Windows and Linux, and offering configurable 5/12V power output on Pin 9, this PCIe 1.1 card ensures broad compatibility and efficient operation. This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps.Maximum Compatibility:- With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.Experience Optimal Technology:- This PCIe to serial adapter supports the following features:Compatible with industry standard 16950 UART:- Supports max baud rate of up-to 921.4Kbps- Provides 5/12V power output on Pin 9 when external power is connected- 256-byte depth FIFO per transmitter and receiver- Supports 9, 8, 7, 6, 5 data bits- Asix AX99100 chipsetPCI Express 1.1 compliant:- PEX2S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.The StarTech.com Advantage- 2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit- OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total, Each of the 2 ports are individually configurable- LOW PROFILE BRACKETS PRE-INSTALLED: PCIe multiport serial card comes w/ a low profile bracket preinstalled & a full profile bracket is incl for versatile install, supports Windows XP and up & LinuxSpecifications:- Ports & interfaces- Host interface:Mini PCI Express- Output interface:Serial- Expansion card standardPCIe 1.1- Serial ports quantity2- Serial interface typeRS-232- Peripheral (Molex) power connectors (4-pin)1- Design- Internal:Yes- Mean time between failures (MTBF)222366 h- RoHS complianceYes- CertificationREACH, CE, FCC- Features- ChipsetAsix AX99100- Baud rate921.6 Kbit/s- FIFO (First In, First Out)256 B- Data bits5,6,7,8,9- Stop bits1,1.5,2- Parity bitEven, Mark, N, Odd, Space- Flow Control typeN, RTS/CTS, XON/XOFF- Operational conditions- Operating temperature (T-T)-10 - 80 °C- Storage temperature (T-T)-20 - 100 °C- Operating relative humidity (H-H)5 - 85%- System requirements- Windows operating systems supportedWindows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64- Linux operating systems supportedYes- Server operating systems supportedWindows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016- Weight & dimensions- Width67 mm- Depth98 mm- Height18 mm- Weight55.6 g- Packaging data- Quantity1- Mounting brackets includedYes- ManualYes- Package width142 mm- Package depth170 mm- Package height30 mm- Package weight146.4 g- Logistics data- Master (outer) case width34.5 cm- Master (outer) case length68.5 cm- Master (outer) case height30.6 cm- Quantity per master (outer) case75 pc(s). tradeinn Techinn

2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit; Upgraded version of our popular card PEX2S952LP OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total; Each of the 2 ports are individually configurable STANDARD PROFILE & LOW PROFILE BRACKET: PCIe multiport serial card comes w/ low profile bracket preinstalled & a full profile bracket is incl for versatile install; supports Windows XP and up & Linux VERSATILE APPLICATIONS: For standard/low profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope StarTech ADVANTAGE: IT professionals choice for over 30 years; PCIe RS232 Serial expansion card is backed for life by StarTech, incl. free 24/5 North America based multi-lingual tech support
