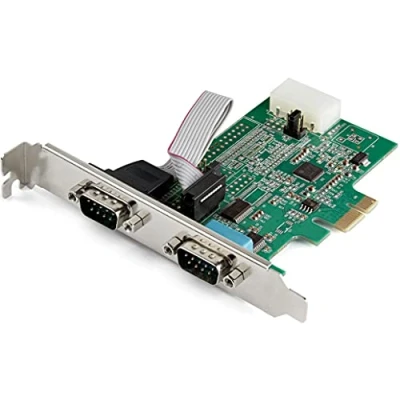

StarTech.com 2 port PCI Express RS232 Serial Adapter Card PCIe Host Controller to Dual DB9 16950 UART Expansion Windows & Linux (PEX2S953)

Startech Rs232 2 Port Pcie Pci-e Expansion Card. Expand your system´s connectivity with the StarTech.com 2-Port RS232 PCIe Expansion Card. This card adds two reliable DB9 serial ports, enabling high-speed communication (up to 921.6Kbps) with devices like printers and modems. Featuring a 16950 UART and ASIX AX99100 chipset, it offers advanced performance with a 256-byte FIFO buffer. Enjoy flexible installation with pre-installed low-profile and included full-profile brackets. Compatible with Windows and Linux, and offering configurable 5/12V power output on Pin 9, this PCIe 1.1 card ensures broad compatibility and efficient operation. This multiport PCI Express RS232 serial adapter card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The dual port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps. Maximum Compatibility:- With broad OS support, including for Windows and Linux, this 2 port PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-profile bracket, and includes optional low-profile brackets, so installation is easy regardless of the case form factor. This card is a direct replacement for PEX2S952. Experience Optimal Technology:- This PCIe to serial adapter supports the following features: Industry standard 16950 UART compatible:- Supports max baud rate of up-to 921.6Kbps Provides 5/12V power output on Pin 9 when external power is connected - 256-byte depth FIFO cache per transmitter and receiver - Supports 9, 8, 7, 6, 5 data bits (one per port) Asix AX99100 chipset:- Base PCI Express 1.1 compliant - Low and full-profile brackets includedThe Choice of IT Pros Since 1985:- StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales. PEX2S953 is backed by a StarTech.com lifetime warranty and free lifetime technical support. The StarTech.com Advantage:- 2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit- OPTIONAL CONFIGURABLE POWER: PCI Express RS232 Serial Adapter Card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total, Each of the 2 ports are individually configurable- STANDARD PROFILE & LOW PROFILE BRACKET: PCIe multiport serial card comes w/ a standard bracket pre-installed & 2x low profile brackets incl for versatile install, supports Windows XP and up & LinuxSpecifications:- Ports & interfaces- Host interface:PCIe- Output interface:Serial- Expansion card standardPCIe 1.1- Serial ports quantity2- Serial interface typeRS-232- Design- Internal:Yes- Product colourGreen- Mean time between failures (MTBF)222366 h- RoHS complianceYes- CertificationREACH, CE, FCC- Features- ChipsetAsix AX99100- Baud rate921.6 Kbit/s- FIFO (First In, First Out)256 B- Data bits5,6,7,8,9- Stop bits1,1.5,2- Parity bitEven, Mark, N, Odd, Space- Flow Control typeN, RTS/CTS, XON/XOFF- Operational conditions- Operating temperature (T-T)-10 - 80 °C- Storage temperature (T-T)-20 - 100 °C- Operating relative humidity (H-H)5 - 85%- System requirements- Windows operating systems supportedWindows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64- Linux operating systems supportedYes- Server operating systems supportedWindows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016- Weight & dimensions- Width63 mm- Depth75 mm- Height15 mm- Weight56 g- Packaging data- Quantity1- Quick installation guideYes- Package width170 mm- Package depth142 mm- Package height30 mm- Package weight136 g- Logistics data- Master (outer) case width68.5 cm- Master (outer) case length34.5 cm- Master (outer) case height30.6 cm- Quantity per master (outer) case75 pc(s). tradeinn Techinn

2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit | Upgraded version of our popular card PEX2S952 OPTIONAL CONFIGURABLE POWER: PCI Express RS232 Serial Adapter Card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total; Each of the 2 ports are individually configurable. STANDARD PROFILE & LOW PROFILE BRACKET: PCIe multiport serial card comes w/ a standard bracket pre-installed & 2x low profile brackets incl for versatile install; supports Windows XP and up & Linux. VERSATILE APPLICATIONS: For standard profile desktop/servers with uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope. STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCI-e RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support.
