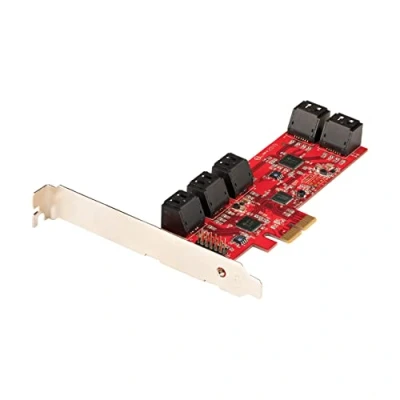

StarTech.com SATA PCIE Card 10 Port Expansion 6Gbps Low/Full Profile Stacked Connectors ASM1062 Non Raid PCI Express to Converter/Adapter (10P6G CARD)

Zoro Tools

This 10-port SATA III (6Gbps) controller enables you to add 10 SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 2.0 Specifications.ASM1062 to Deliver 10-Port SATA 6Gbps PerformanceFeaturing the ASM1062 controller, this SATA card enables the connection of 10 high-performance SATA 6Gbps drives with a combined total throughput of up to 8Gbps. The SATA drives are connected via ten individual SATA ports located on the card (SATA cables sold separately).Wide CompatibilityThe controller card is widely supported across all popular operating system platforms including Windows (7,8,10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.Hassle-Free InstallationThe SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.10P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.

Amazon

Easy installation: expansion card with plug & play installation in full- or low-profile pci-e slot (full-profile bracket mounted, low-profile bracket mounted, low-profile bracket mounted, low-profile bracket mounted, low-profile bracket ugel supplied) ; supports storage spaces (microsoft), raid assistant (macos) and mdraidmdadm (linux) Asm1062: sata 3 6 gbps card with one 2-port x2 pcie gen 2 host chip (asm1062) and two 5-port port-multipliers (jmb575), which allows you to add 10 sata (serial ata) ports, for a total bandwidth of 8 gbps; supports port multiplier & ncq High-performance: add 10 sata iii 6 gbps ports to your desktop computer or server through a pcie x2 slot for connecting sata drives (hddssd); 10 ports sata pcie card for connecting drives via sata cables (sold separately) Compatibility: supports pcie 20, sata 32 & ahci 10 3 specifications, and previous generations with lower performance; windows (7), macos (1010), linux (2632); improved compatibility without integrated raid; supports ata & atapi Operating system: linux 2632 and up 10p6g-pcie-sata-card
