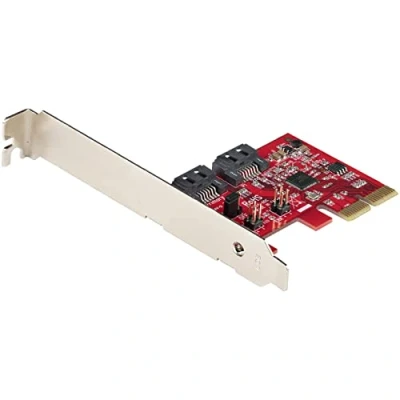

StarTech.com SATA PCIE Card 2 Port Expansion 6Gbps Full/Low Profile PCI Express to Adapter/Controller ASM1062R RAID Converter (2P6GR CARD)

Zoro Tools

This 2-port SATA III (6Gbps) controller with RAID enables you to add two SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot, and build the disks into a hardware RAID array. The card supports SATA III and PCI-Express 2.0 Specifications, and can also be used to add optical disk drives (ODD) like CD/DVD/Blu-ray to your computer.Versatile Hardware RAID ConfigurationsThis RAID controller supports different hardware RAID configurations to meet your specific application:RAID 0 (striped)- Splits your data evenly across both drives to increase read/write performance, while also increasing the size of your volume storage capacity to the combined total of both drives.RAID 1 (mirrored)- Exactly copies your data on both drives to provide data redundancy, so your data will be safely backed-up should one of the drives fail.SPAN (big)- Combines both drives into a single array to increase the size of your volume storage capacity to the combined total of both drives.JBOD (Just a bunch of disks)- Exposes both drives as individual devices to be treated independently.ASM1062R to Deliver 2-Port SATA 6Gbps PerformanceFeaturing the ASM1062R controller, this SATA card enables the connection of two high-performance SATA 6Gbps drives with a combined total throughput of up to 8Gbps. The SATA drives are connected via two individual SATA ports located on the card (SATA cables sold separately).Wide CompatibilityThe controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.For managing and configuring RAID functionality, the card supports OS booting on Windows & Linux for BIOS level RAID setup & configuration, and includes an application on Windows for OS level RAID setup, configuration & monitoring. On macOS only software RAID is supported using RAID Assistant.Hassle-Free InstallationThe SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included.2P6GR-PCIE-SATA-CARD is backed by a StarTech.com lifetime warranty and free lifetime 24/5 North American based, multi-lingual support.

Amazon

High performance: add two sata iii 6gbps ports to your desktop computer or server using pci express x2 slot to connect to sata drives(hddssd)and 6gbps per portand built-in hardware raid controller to shut off main cpu load for maximum performance Versatile hardware raid dows: pcie card supports hardware raid 0raid 11 span (large disk)and card can also be used without raid on jbod, which supports hdd, ssd and optical disc drives (blu-raydvdcd romrw) Compatibility: pcie 20and windows (7), macos (1010), linux (2632)and operating system front in windows and linux for bios level raid setuctionconfiguration uploadand osand level includes windows app for raid setupconfiguration and monitoringandsoftware raid on macos only 2p6gr-pcie-sata-card Applications: setup on full or low profile pci-e slot (full-profile bracket installed, low profile)andideal for labs, performance cad or audiovideo workstations, data banks and schoolsandupgrade computer systems with hardware raid and sata 6gbps Make sure this fits by entering your model number
