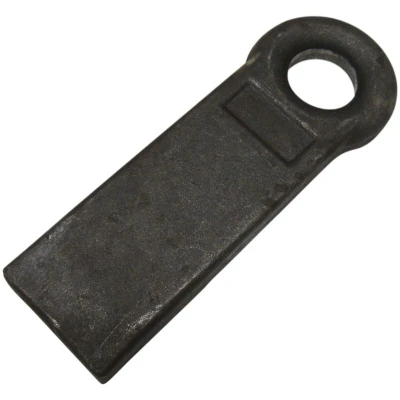

Straight Trailer Hitch Eye 16" Mild Steel (24 Ton Weld On Towing Ring)

General description Our Straight Trailer Hitch Eye is designed for robust towing applications, made from mild steel and intended to be welded onto trailers. It features an eye as the attachment point for secure towing. Technical specifications Material: Mild Steel Product Codes and Dimensions: SFAG0100A: A=128 mm, B=31.5 mm, C=91.5 mm, D=110 mm, E=50.5 mm, Max Breaking Load=24 Ton SFAG0100B: A=305 mm, B=30 mm, C=88 mm, D=110.5 mm, E=50.5 mm, Max Breaking Load=24 Ton SFAG0100C: A=405 mm, B=30.5 mm, C=93 mm, D=113 mm, E=51 mm, Max Breaking Load=24 Ton SFAG0100D: A=460 mm, B=31.5 mm, C=91 mm, D=110.5 mm, E=50 mm, Max Breaking Load=24 Ton SFAG0101A: A=307 mm, B=30.5 mm, C=91 mm, D=112 mm, E=51 mm, Max Breaking Load=35 Ton SFAG0101B: A=407 mm, B=31.5 mm, C=91 mm, D=112.5 mm, E=50.5 mm, Max Breaking Load=35 Ton SFAG0104: A=308 mm, B=41 mm, C=93.5 mm, D=113 mm, E=50.5 mm, Max Breaking Load=112 Ton SFAG0104A: A=304 mm, B=42.5 mm, C=91 mm, D=113 mm, E=51 mm, Max Breaking Load=82 Ton
