SwissTech 20.0 Weldon Long Fine Rough E/Mill TiCN 8% Co

ManoMano

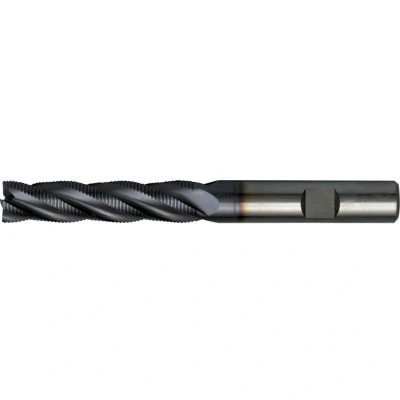

SwissTech: 20.0 Weldon Long Fine Rough E/Mill-TiCN-8% Co Series 26 - Long Series, TiCN Coated Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to js12. Shank diameter to h6. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness). MPN: E7762200 EAN: 5036140205093 20.0 Weldon Long Fine Rough E/Mill-TiCN-8% Co Attributes: Coolant Delivery: External Cutter Diameter: 20.0mm Cutter Diameter Tolerance: js12 Cutting Direction: Right Hand Finish/Coating: Uncoated Flute Length: 75.0mm Helix Direction: Right Hand Length Type: Long MFR Part No.: E7762200 Material: Cobalt High Speed Steel Material Grade: M42 Milling Application: Roughing High-feed Milling Number of Flutes: 4 Overall Length: 141.0mm Pitch: Fine Plunge Type: Centre Cutting Series: 26

Zoro Tools

Series 26 - Long Series, TiCN Coated Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to js12. Shank diameter to h6. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
