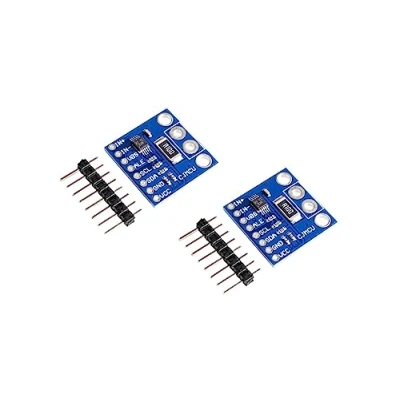

TECNOULAB 2pcs INA226 IIC I2C interface bidirectional current/power monitoring sensor

【INA226】INA226 is a current shunt and power monitor with an I2C or SMBUS compatible interface. The device monitors both a branch voltage drop and a bus supply voltage. Programmable calibration value, conversion times and averaging, combined with an internal multiplier, allow for direct readings of current amps and watts 【Compatible】The INA226 senses current at common-mode bus voltages that can range from 0V to 36V, regardless of supply voltage. The device is powered by a single 2.7V to 5.5V supply, with a typical draw of 330uA of supply current. The device is specified in the operating temperature range of -40°C to 125°C and has up to 16 programmable addresses on the I2C compatible interface. 【Compact Design】 Detects bus voltages from 0V to 36V; Side up or side down sensing; Reports on current, voltage and power. Configurable averaging Options: 16 programmable addresses; Operates on 2.7V to 5.5V power supply; 10-pin DGS package (VSSOP). 【High Performance】☆☆High ✔Accuracy:– 0.1% ✔Gain Error (maximum);–10 μV Offset (maximum)☆☆ Configurable Averaging Options: ✔16 Programmable Addresses ✔Runs from a 2 .7V to 5.5V ✔ 10-pin DGS (VSSOP) package 【pin description 】VBUS: bus voltage input SDA/SCL: IIC bus data lines and clock signal ALERT: multifunctional alarm output A0/A1: IIC address line IN+/IN-: non-inverting analog input, inverting analog input
