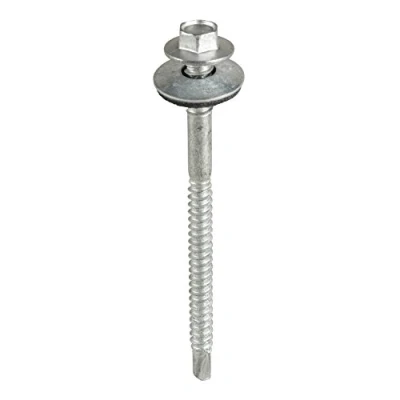

TIMco LH115W16B Hex No.3 Self Drilling Screw 5.5/6.3 x 115 and M16 Washers Silver Ruspert (Box of 100)

General description Specifically designed to attach composite panels to light section steel (max. 5mm), these Timco 5.5/6.3 x 115mm Composite Panel Screws feature a self-drilling point with a hexagon head and split thread. The exterior plating provides a reliable and durable corrosion-resistant coating, capable of withstanding 500 hours of salt spray. Technical specifications Size: 5.5/6.3 x 115 mm Socket Size: 8 mm Effective Thread Length: 41 mm Max. PT: 65-95 mm Head Type: Hex Material: Case & Core Hardened Carbon Steel Pack Quantity: 100 screws per box Packs per Carton: 12 Corrosion Rating: 3 (suitable for urban & industrial areas with a low salt atmosphere) EPDM Washer: 16 mm Thread Type: Dual 60° Self-Tapping Drill Tip W: 4.5 mm Drill Tip L: 8 mm Torque: 12 Nm Drill Tip A: 110° Head Height: 5.7 mm Other information Approval: BS EN 10666 (DIN 7504) Standard Equipment: 1x Timco 5.5/6.3 x 115mm Composite Panel Screws For Light Section Steel Box Of 100

Specifically Designed To Attach Composite Panel To Light Section Steel (Max. 5Mm). Self-Drilling Point With Hexagon Head And Split Thread. Exterior Plating Gives A Reliable And Durable Corrosion Resistant Coating Which Resists 500 Hours Salt-SpraySee `More Information` below for sizing and Colour detailsSpecificationFinish = Exterior (Silver Organic)Material = Case & Core Hardened Carbon SteelPackaged Height = 92mmHead = HexSocket Size (metric) = 8mmPackaged Width = 134mmPackaged Weight = 1.8kgPackaged Length = 194mmLength (metric) = 115mmMax Drilling Thickness (metric) = 5mmThread Diameter (metric) = 5.5mm - 6.3mmHeight = 5.5 - 6.3mmEffective Thread Length (metric) = 41mmLength = 115mmType of Point = Self-Drilling No.3Width = 5.5 - 6.3mmFixed Washer Diameter (metric) = 12mmPTDTIMLH115W16B
