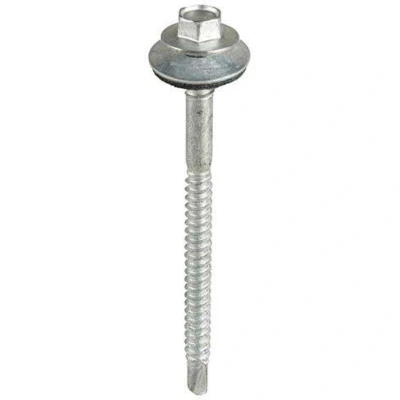

TIMco LH98W16B Hex No.3 Self Drilling Screw 5.5/6.3 x 98 and M16 Washers Silver Ruspert (Box of 100)

General description Specifically designed to attach composite panels to light section steel (max. 5mm), these Timco 5.5/6.3 x 98mm Composite Panel Screws feature a self-drilling point with a hexagon head and split thread for enhanced performance. Technical specifications Size: 5.5/6.3 x 98 mm Material: Case & Core Hardened Carbon Steel Head Type: Hex Effective Thread Length: 41 mm Socket Size: 8 mm Drill Tip Type: Self-Drilling No.3 Drill Tip Width: 4.5 mm Drill Tip Length: 8 mm Max. Torque: 12 Nm Max. PT: 78 mm Min. PT: 48 mm EPDM Washer: 16 mm Corrosion Rating: 3 (Urban & industrial areas with a low salt atmosphere) Finish: Exterior (Silver Organic) Pack Quantity: 100 screws per box Packs per Carton: 12 Approval: BS EN 10666 (DIN 7504) Other information Features exterior plating for reliable and durable corrosion resistance, tested for 500 hours of salt spray. Standard Equipment: 1x Timco 5.5/6.3 x 98mm Composite Panel Screws For Light Section Steel Box Of 100

Specifically Designed To Attach Composite Panel To Light Section Steel (Max. 5Mm). Self-Drilling Point With Hexagon Head And Split Thread. Exterior Plating Gives A Reliable And Durable Corrosion Resistant Coating Which Resists 500 Hours Salt-SpraySee `More Information` below for sizing and Colour detailsSpecificationFinish = Exterior (Silver Organic)Material = Case & Core Hardened Carbon SteelPackaged Height = 112mmHead = HexLength (metric) = 98mmSocket Size (metric) = 8mmPackaged Width = 92mmPackaged Weight = 1.56kgPackaged Length = 182mmMax Drilling Thickness (metric) = 5mmThread Diameter (metric) = 5.5mm - 6.3mmHeight = 5.5 - 6.3mmEffective Thread Length (metric) = 41mmLength = 98mmType of Point = Self-Drilling No.3Width = 5.5 - 6.3mmFixed Washer Diameter (metric) = 12mmPTDTIMLH98W16B
