TIMCO Twin Threaded Woodscrews PZ Double Countersunk 7 x 1 Zinc Plated Box of 200

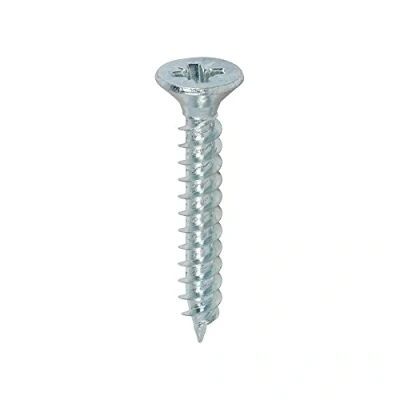

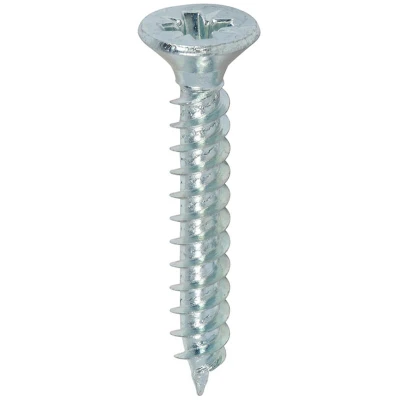

The TIMco Twin Thread Zinc Countersunk Woodscrew is designed for general use in softwood and various hardwoods. It features a double countersunk head and zinc plating for durability and corrosion resistance. The twin thread design enables faster insertion and greater pull-out resistance, making it suitable for a range of applications. The screw is 7 x 1 inches, made from C10-18 steel, and plated in zinc (3-5 microns). It has a 25° sharp point and a single lead start to aid a fast start, and it is partially threaded from 1 1/4 inches and above. The screw is manufactured to BS 1210 standards and is compatible with TIMco and other leading plastic expansion plugs, suitable for soft timber and can be used in masonry with a plastic plug. The 60° twin-threads with a parallel shank contribute to faster insertion and improved pull-out resistance, while surface hardness reaches up to 750 HV and core hardness up to 450 HV to balance strength and ductility.

Features

• Twin thread with single lead start for fast installation
• Double countersunk head reduces head shear
• Zinc plating for corrosion resistance
• Made from C10-18 steel for consistent quality
• Partially threaded from 1¼
• and 60° twin-threads with parallel shank for faster insertion and greater pull-out resistance
• Suitable for TIMco and plastic expansion plugs

Technical specifications

• Size: 7 x 1 inches
• Material: C10-18 steel
• Plating: Zinc (3-5 microns)
• Surface hardness: up to 750 HV
• Core hardness: up to 450 HV
• Point type: 25° sharp point and single lead
