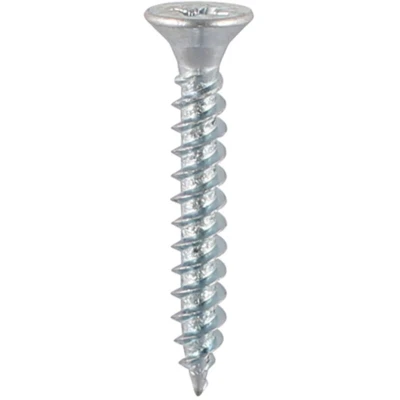

TIMCO Twin Threaded Woodscrews PZ Double Countersunk 6 x 1 Zinc Plated Box of 200

The TIMco Twin Thread Zinc Countersunk Woodscrew is designed for general use in softwood and various types of hardwood. This traditional twin-thread screw features a single lead start for fast installation and is especially effective in soft timber applications or masonry when used with a plastic plug. It is manufactured from C10-18 steel with zinc plating (3–5 microns), offering surface hardness up to 750 HV and core hardness up to 450 HV. The screw features a 25° sharp point, a 60° twin-thread with a parallel shank for quicker insertion and improved pull-out resistance, and a double countersunk head to reduce head shear and aid flush countersinking. It is partially threaded from 1 1/4 inches and above and is compatible with TIMco and other leading plastic expansion plugs.

Features

• Twin-thread, single-lead for fast start
• 6 x 1 inches, C10-18 steel
• Zinc plating 3–5 microns
• 25° sharp point; 60° twin-threads
• Double countersunk head for flush finish

Technical specifications

• Thread type: twin with single lead
• Point: 25° sharp point
• Thread angle: 24 degrees
• Surface hardness: up to 750 HV
• Core hardness: up to 450 HV
• Material: C10-18 steel
