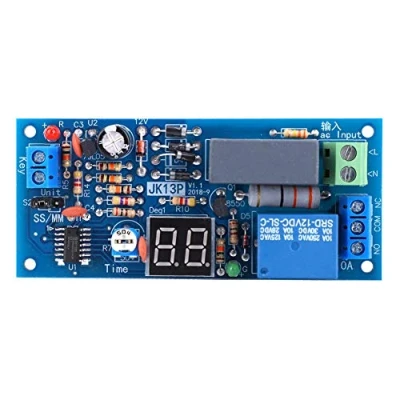

Time Delay Relay Module 220VAC 1.0W, Timer 1 99 Secs/1 Mins, Off Cycle with LCD Display (160V 250V Available)
|
£ 12.62 | To Shop |
Description
Amazon
【HOW TO OPERATION】Trigger start count down, the time delay relay module is immediately turned on, and the timer relay is turned off after the countdown ends. The middle trigger stops immediately. Trigger Mode: Shorted for more than 0.02 seconds. 【LCD DISPLAY DELAY OFF RELAY】The 2-digit red digital tube, the remaining time is displayed during the count down, otherwise the set time is displayed. 【ADJUSTABLE CYCLE TIMES SWITCH MODULE】Timer reply is adjusted by 500K potentiometer, dynamically displayed on the digital tube during adjustment. 【OUTPUT MODE】The delay off timer relay is passive output mode, dry contact, dead, switching value, equivalent to switch. Output Type: A set of normally open + normally closed. Load Capacity: 10A (voltage range 0-250V AC, or 0-30V DC) 【HIGH ACCURACY】Accuracy is 1 second or 1 minute, depending on the jumper setting.
Compare webshops (1)
Description
(1)
【HOW TO OPERATION】Trigger start count down, the time delay relay module is immediately turned on, and the timer relay is turned off after the countdown ends. The middle trigger stops immediately. Trigger Mode: Shorted for more than 0.02 seconds. 【LCD DISPLAY DELAY OFF RELAY】The 2-digit red digital tube, the remaining time is displayed during the count down, otherwise the set time is displayed. 【ADJUSTABLE CYCLE TIMES SWITCH MODULE】Timer reply is adjusted by 500K potentiometer, dynamically displayed on the digital tube during adjustment. 【OUTPUT MODE】The delay off timer relay is passive output mode, dry contact, dead, switching value, equivalent to switch. Output Type: A set of normally open + normally closed. Load Capacity: 10A (voltage range 0-250V AC, or 0-30V DC) 【HIGH ACCURACY】Accuracy is 1 second or 1 minute, depending on the jumper setting.
