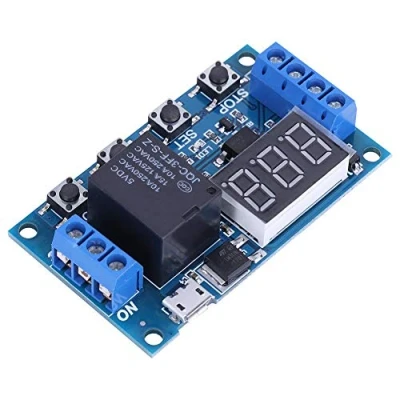

Timer Module, Switch DC 6V 30V Trigger On/Off Cycle Timing Delay Switch, Adjustable LED Display Automation Digital Module Micro USB 5V

[Wide Voltage Compatibility] Wide dc power supply voltage from 6V to 30V, supporting micro USB 5.0V power supply for convenience. Load Capacity: DC 30V 5A, AC 220V 5A, Quiescent Current: 20mA, Operating Current: 50mA, Operating Temperature: -40℃~85℃ [Intuitive Interface] DC 6V-30V trigger delay On/Off cycle timer relay switch module features LED digital dispaly. Clear, simple, and powerful interface, meeting all your needs with ease of use. [Enhanced Sleep Mode] Automatically turns off display after 5 minutes of inactivity, easily wake up with any button press. C-P sleep mode: if no operation within 5 minutes; display will close automatically while procedure runs normally. O-d normal mode: displays always shows. Press and hold STOP button for 2 seconds to change between C-P and O-d, present state will flash and then back to the main interface. [Emergency Stop Function] Built-in STOP button for emergency situations, with reverse input protection for safety. Relay Enable Mode: 1. NO: Connection is allowed during OP time. 2. OFF: Connection is not allowed, always turned off. Press STOP button at main interface to change between ON and OFF, the present state will flash then back to main interface. (This is emergency stop function, used to disconnect relay.) [Flexible Settings] Set different OP, CL, LOP parameters independently, automatically save settings in case of power failure, and improve anti-interference with optical coupling isolation. OP: Connect time. CL: Disconnect time. LOP: Loop times(1~999, "---" indicates infinite times). Press SET button at the main interface (display 000), it will show OP(CL, LOP) and corresponding time.
