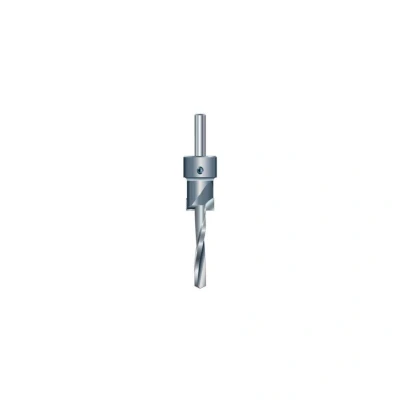

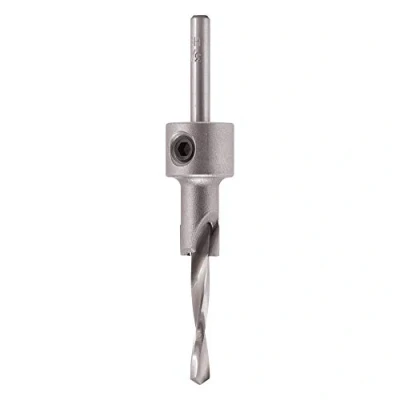

Trend Professional TCT Counter Bore Set, 3/8 Inch Counterbore with 3/16 HSS Slow Spiral Drill Bit, Tungsten Carbide Tipped, CB38 316TC

The Trend CB38-316TC is a tungsten carbide tipped counterbore with an attached HSS slow spiral drill bit, designed for recessed bolt and screw heads in wood and wood-based materials. It offers a 3/8 inch counterbore diameter and a 3/16 inch drill diameter, and includes a hex-key for adjusting drill length to accommodate different screw lengths. The bit is suitable for plywood, particle board, and plastics, and is intended to create clean recesses that allow bolt and screw heads to sit below the surface, finishing with matching plugs for a seamless look. It is optimized for hardwoods and applications requiring clear finishes when filled with plugs. Use only at drilling speeds and ensure proper alignment of flutes during setup to achieve accurate depth and alignment.

Features

• Tungsten carbide tipped counterbore with pilot drill

Features

• 3/8 inch counterbore and 3/16 inch drill diameter

Features

• Fully adjustable drill length via supplied hex key

Features

• Includes HSS slow spiral drill bit for recessing bolts/screws

Features

• Ideal for hardwoods and areas with clear finishes

Features

• Sets bolt/screw heads below surface for plug coverage

Specifications

• Drill diameter: 3/16 inch

Specifications

• Counterbore diameter: 3/8 inch

Specifications

• Suitable for plywood, particle boards, and plastics (abrasive)

Specifications

• HSS slow spiral drill bit included

Specifications

• Hex key provided to adjust drill length

Use at drilling speeds only. Not suitable for ferrous and non-ferrous metals. Ensure flutes of the drill are aligned with the flute of the counterbore during setup.
