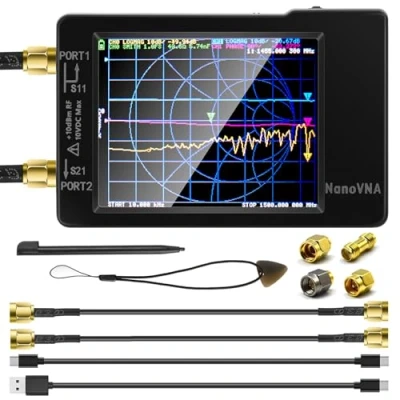

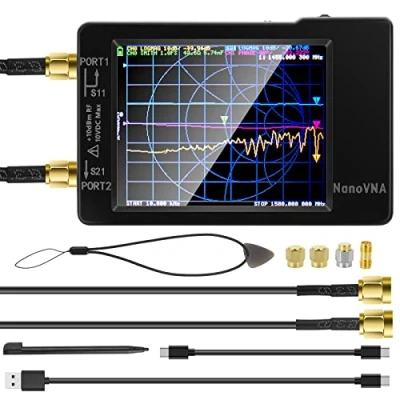

Upgraded AURSINC NanoVNA H Vector Network Analyzer 10KHz 1.5GHz HF VHF UHF Antenna Analyzer, Latest HW Version 3.6, Measuring S Parameters, SWR, Phase, Delay, Smith Chart,Support Data Storage

Upgraded NanoVNA-H: AURSINC NanoVNA-H is developed by Hugen, tiny and portable. With lastest 3.6 version, 2.8 inch LCD(320 x240) touchscreen. Added a ABS case, which is protective and dust-proof. Supports time domain analysis function (TDR). This Antenna Analyzer is a useful tool to test out antennas. It is a handheld and smart analyzer for electronics engineer, amateur radio operators or radio amateurs Widely Range Frequency: The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 1.5GHz. The 50K-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic. The extended 300M-900MHz band provides better than 60dB of dynamics, and the 900M-1.5GHz band is better than 40dB of dynamics Multiple TX/RX Functions: The default firmware main function is used for antenna performance measurement. The TX/RX method can measure the complete S11 and S21 parameters. If you need to obtain S12 and S22, you need to manually replace the transceiver port wiring. The CH0 output level is increased to 0dBm when using the fundamental wave, resulting in more accurate reflection measurement Support Android phone & PC Softsare Control: The nanovna-h is compatible with most Android mobile phones. Support connect nanovna to mobile phone with USB-C to USB-C line. Supports Windows PC control via the practical app NanoVNASave, can download touchstone(SNP) files for radio design and simulation software. Address issues of small screen and insufficient brightness and so on Power Supply & Built-in Micro-SD Port: Built-in rechargeable 650mAh battery, can work for 2 hours continuously. The unit interface displays battery usage, providing a clear understanding of the power status. With MicroSD card port, you can save field test data or screenshots to a MicroSD card at anytime. Support up to 32GB card (Not include in the pacakge) Package List: 1x NanoVNA H host, 2x 30cm SMA male to male RG174 RF cable, 1x SMA simple calibration kit, 1x SMA female to female connector, 1x USB Type-C data cable, 1x USB TypeC-TypeC Line, 1x Touch plectrum, 1x Stylus pen. NOTE: Our nanovna is only compatible with low-speed and supports SPI mode SD card for now. For RF electronics engineers, researchers, and ham radio hobbyist
