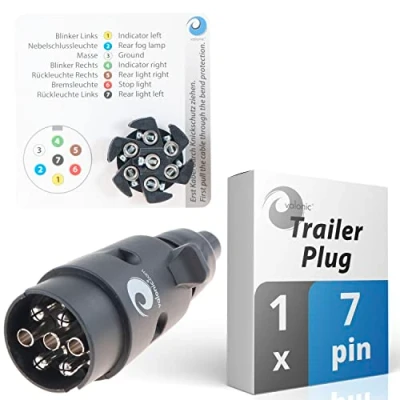

valonic trailer plug 7 pin, black incl. wiring template pin connector for caravan

TEMPLATE: The car indicator is activated, but the brake light lights up on the car trailer? The supplied wiring template simplifies the wiring of the trailer cable harness enormously. This significantly reduces the risk of wiring errors. HIGH-QUALITY: Reliable and durable due to galvanised copper contacts SPECIFICATIONS: The 7-pin trailer hitch connector measures 10 x 5.8 x 4 cm and weighs 63 grams. Suitable for 12V or 24V wiring. INSTRUCTION-1: Remove the rubber cap from the thin end of the plug. 2. Unscrew the two screws at the thicker end. 3. Open the housing. 4. remove the contact. Attach (optional) wire end ferrules (not included) to the wiring harness. 6. 6. pull the wiring harness through in this order: Rubber cover, strain relief 7 Insert the contact holder with contact pins into the template so that the screws and the template imprint are visible. INSTRUCTION-2: 8. make sure that the "nose" of the contact receptacle is on the marking of the template 9. insert all cables according to the template labelling and tighten. 10. remove the component and insert it with contact pins into the housing. Remove the template and insert the component with contact pins into the housing. 11. Tighten the screws of the strain relief. 12. Assemble the enclosure. 13. Slide the rubber cap onto the end.
