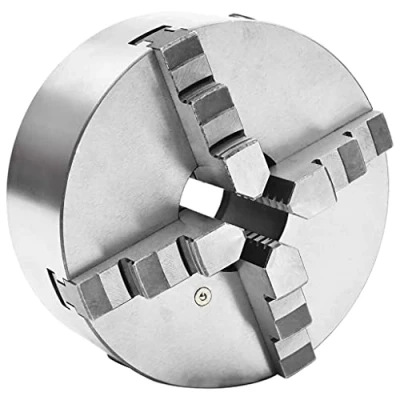

vidaXL 4 Jaw Self-Centering Lathe Chuck - 200 mm - Steel

This self-centering 4-jaw lathe chuck is designed to handle a wide range of turning tasks, enabling diverse designs and applications. It delivers high clamping accuracy on solid or hollow circular materials, as well as triangular and hexagonal shapes. Crafted from HT300 steel, it combines high hardness and wear resistance with a compact, easy-to-use form. The chuck features a 4-jaw self-centering design for straightforward operation and reliable grip across varying workpiece geometries, while its compact profile supports efficient handling in tight spaces. With a substantial clamping range and robust construction, it is suitable for demanding precision work where versatility and durability are essential.

Key features

• Self-centering 4-jaw design for versatility
• Outside diameter 200 mm; passage 65 mm
• Internal jaw clamp 4–85 mm; external 65–200 mm
• HT300 steel with high hardness and wear resistance
• Compact design; total height 75 mm
• Maximum speed 2000 R/min
