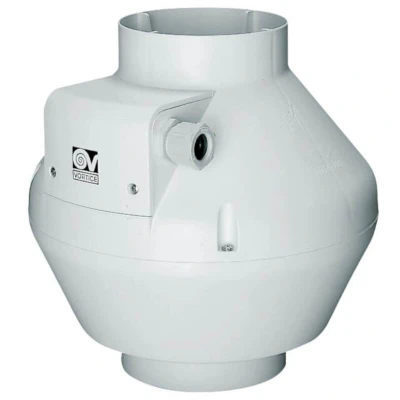

Vortex ASP. CENTRIFUGE SERIES CA VO AC 100 D 16008
Description
ManoMano
Dimensions and technical details 220-240 Volt ~ 50/60 Hertz Centrifugal inline fan Housing colour: white Housing material: self-extinguishing plastic, non-yellowing Nominal width: 100 mm Max. wattage: 50 W Max. current consumption: 0.22 A Max. revolutions per minute: 2400 Max. airflow rate: 251 m³/h Total pressure Pmax: 366 Pa Sound pressure level Lp-3m: 56 dB(A) Max. temperature: 50°C Protection code: IPX4 Insulation class: II Weight: 2.4 kg Thermal overload protection Integrated protection grille on the air intake side Optional speed controllers and sensors sold separately Mounting options: in walls, ceilings, suspended ceilings (steel sheet mounting brackets included in the delivery) Ideal for subtle extraction of air at home, in commercial or industrial buildings Model Ø A B Ø C Ø D E F CA 100 V0 D 250 mm 250 mm 250 mm 97 mm 30 mm 30 mm Optional accessories are available in our shop.
Description
(2)
Dimensions and technical details 220-240 Volt ~ 50/60 Hertz Centrifugal inline fan Housing colour: white Housing material: self-extinguishing plastic, non-yellowing Nominal width: 100 mm Max. wattage: 50 W Max. current consumption: 0.22 A Max. revolutions per minute: 2400 Max. airflow rate: 251 m³/h Total pressure Pmax: 366 Pa Sound pressure level Lp-3m: 56 dB(A) Max. temperature: 50°C Protection code: IPX4 Insulation class: II Weight: 2.4 kg Thermal overload protection Integrated protection grille on the air intake side Optional speed controllers and sensors sold separately Mounting options: in walls, ceilings, suspended ceilings (steel sheet mounting brackets included in the delivery) Ideal for subtle extraction of air at home, in commercial or industrial buildings Model Ø A B Ø C Ø D E F CA 100 V0 D 250 mm 250 mm 250 mm 97 mm 30 mm 30 mm Optional accessories are available in our shop.
